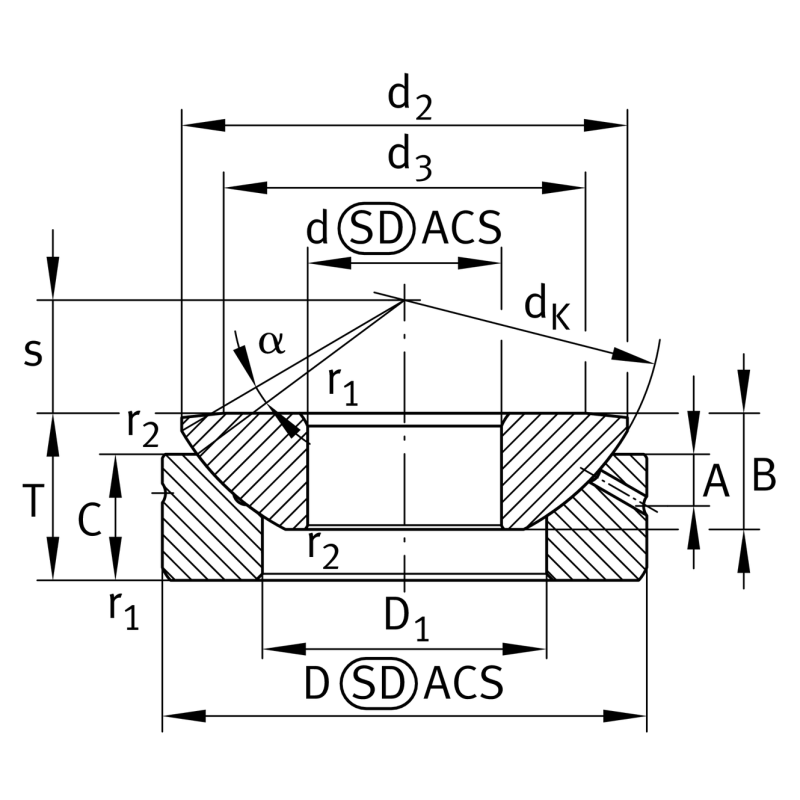

| Inner diameter bearing | d | 10 | mm |
| Height | T | 9.50 | mm |
| Basic static load rating, axial | C0a | 122,000 |
| Outside diameter bearing | D | 30 | mm |
| Basic dynamic load rating, axial | Ca | 24,400 |
| Edge Spacing | r1smin | 0.20 | mm |
| Connection measure Inner ring | da max | 21 | mm |
| Ball diameter | dK | 32 | mm |
| Front surface diameter of shaft washer | d3 | 21 | mm |
| Width Outer ring | C | 6 | mm |
| Distance lubrication Bore | A | 3 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0.01 | mm |
| Height, lower tolerance | TUT | -0.40 | mm |
| Connection measure Inner ring | d2 | 27.50 | mm |
| Width Inner ring | B | 7.90 | mm |
| Plane Surface Spacing | s | 7 | mm |
| Tilt angle | α | 10 | ° |
| Outside diameter, lower tolerance | Do UT | -0.01 | mm |
| Width inner ring, lower tolerance | BUT | -0.24 | mm |
