GAKR25-PB INA

INA
Bearings
Spherical Plain Bearings and Rod Ends
Rod Ends
GAKR25-PB

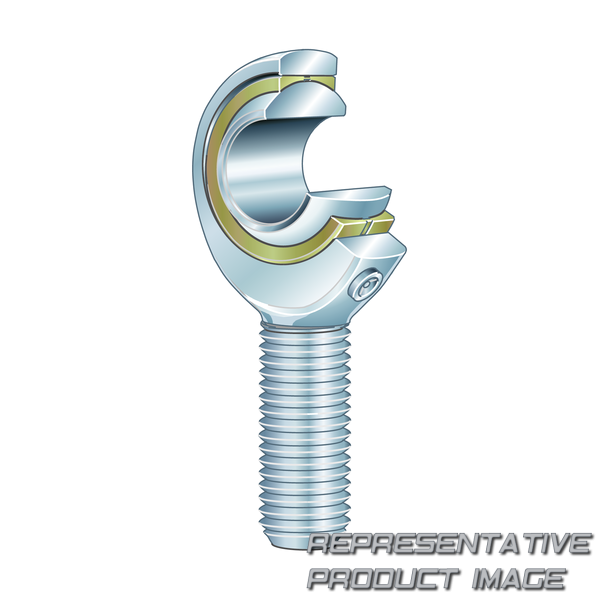

INA GAKR25-PB

0066335790000

80.12 € (vat. excl.) ~~92.41 €~~ -13%

50+ pcs. with 1 to 3 days delivery to France

Replaces: GAKR25-PB (ELGES) , GAKFR 25 PB (INA)

Specifications

Weight	654g

Dimensions
Cross references

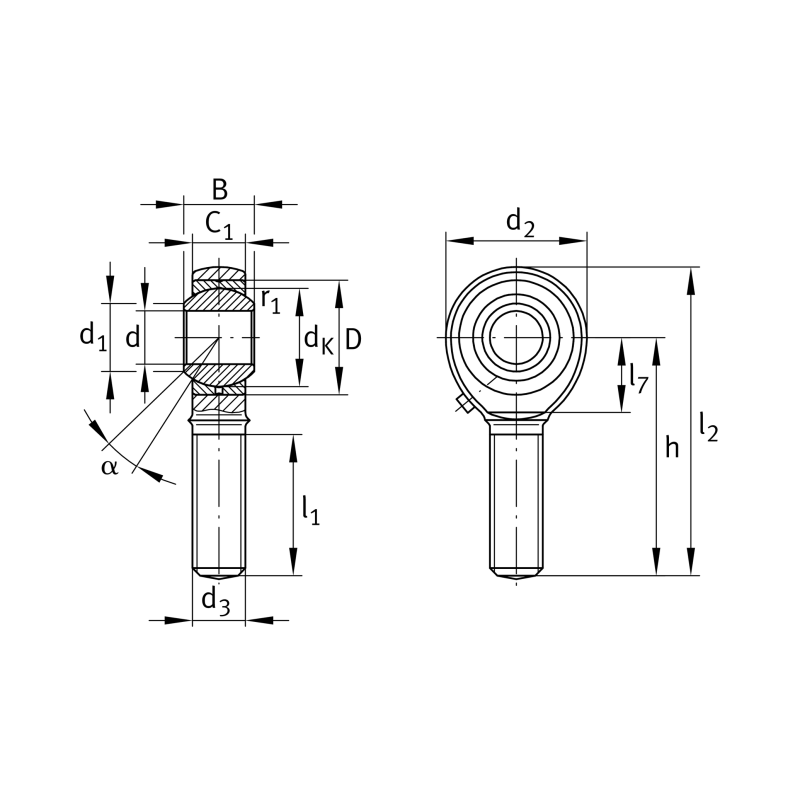

Dimensions

Ball diameter	d_K	42.85	mm
Outer eye diameter	d₂	60	mm
Shank Length External thread rod	h	94	mm
Tilt angle	α	15	°
Total length external thread head	l₂	124	mm
Radial Clearance	G_r	0 - 0,035
Bore diameter bearing, tolerance	d_T	H7

Outer flange diameter inner ring	d₁	29.50	mm
Thread size	d₃	M24x2
Width of the rod end	C₁	22	mm
Shank Length External thread head	l₁	55	mm
Distance drilling with/shaft start	l₇	32	mm
Bore diameter bearing, upper tolerance	d_OT	0.02	mm
Width inner ring, lower tolerance	B_UT	-0.12	mm

Main Dimensions & Performance Data

Bore diameter bearing	d	25	mm
Width inner ring	B	31	mm
Basic static load rating, radial	C_0r	72,900

Outside diameter bearing	D	47	mm
Basic dynamic load rating, radial	C_r	47,100

Mounting dimensions

Edge Spacing	r_1smin	0.30	mm

Manufacturer	Part Number
SKF	SAKAC25 M (SKF)
Schaublin	SMG25
WSW Wälzlager	SABP25S
Durbal	BEMN25-20-501 (DURBAL)
Hirschmann	SMC25
