| Material spindle | Steel | ||
| Material slide | Anodised wrought aluminium alloy | ||
| Material guide slide | Steel | ||
| Note on materials | RoHS-compliant | ||
| Material end cap | Painted die cast aluminium | ||
| Static deflection (load in standstill) | 0.1% of the axis length | ||
| Additional weight per 10 mm stroke | 124 g | ||
| Product weight | 11.451 g | ||
| Feed constant | 10 mm/U | ||
| Mass moment of inertia JL per kg of working load | 0,025 kgcm² | ||
| Torsional mass moment of inertia It | 506.000 mm⁴ | ||
| Max. radial force at drive shaft | 290 N | ||
| My at theoretical life value of 100 km (only guide consideration) | 1.142 Nm | ||
| Max. moment Mz | 310 Nm | ||
| Max. moment Mx | 300 Nm | ||
| Fy at theoretical life value of 100 km (only guide consideration) | 25.051 N | ||
| Max. force Fy | 6.800 N | ||
| Idle torque at vmax | 0,3 Nm | ||
| 2nd moment of area Iy | 966.000 mm⁴ | ||
| Ambient temperature | 0 °C ... 50 °C | ||
| Cleanroom class | Class 8 according to ISO 14644-1 | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Repetition accuracy | ±0.02 mm | ||
| Max. rotational speed | 3.000 rpm | ||
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | ||
| Spindle type | Ball screw | ||

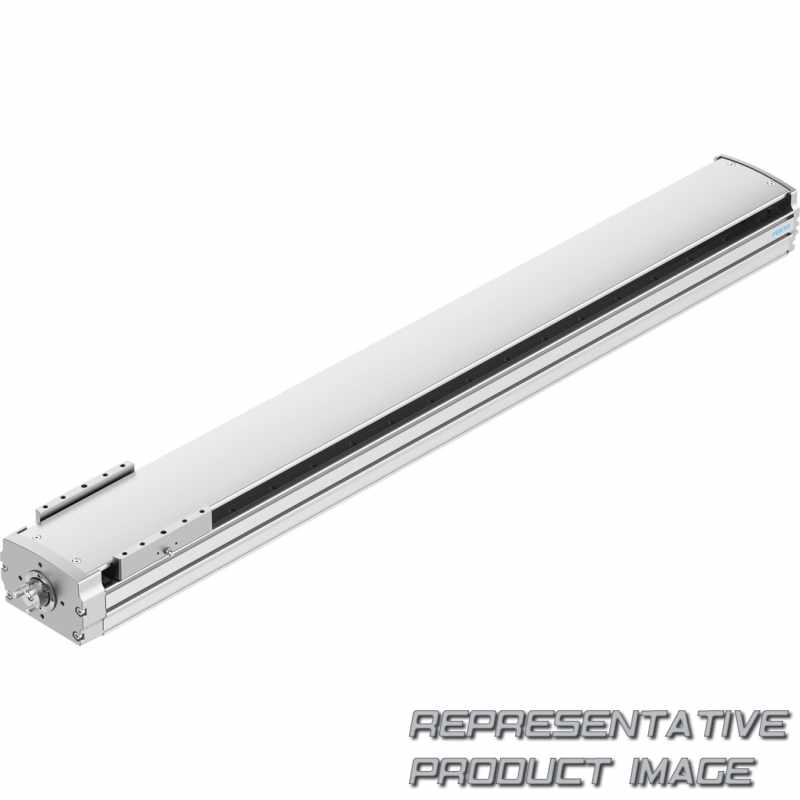

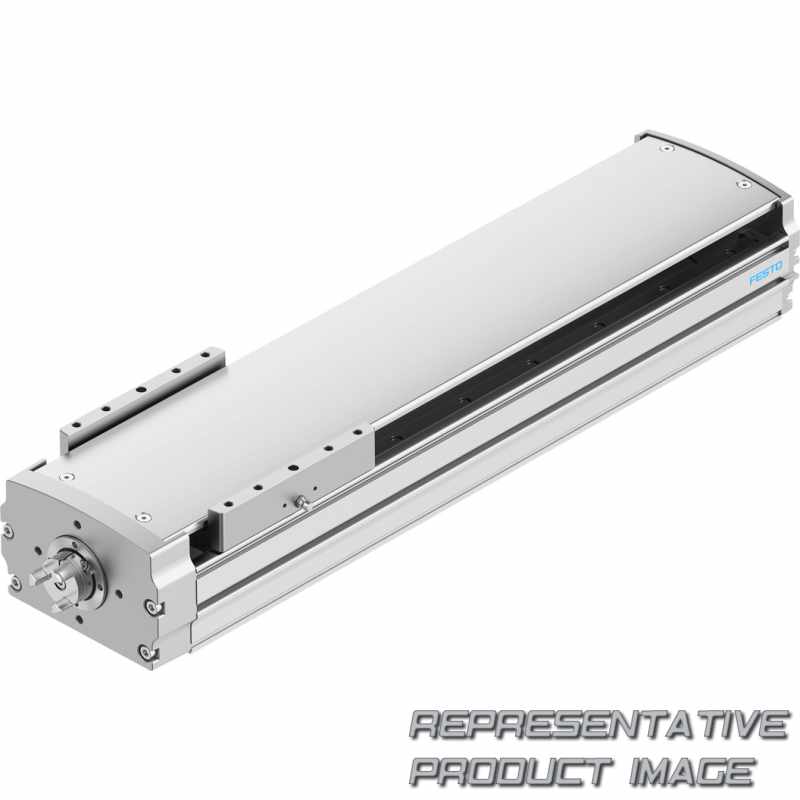

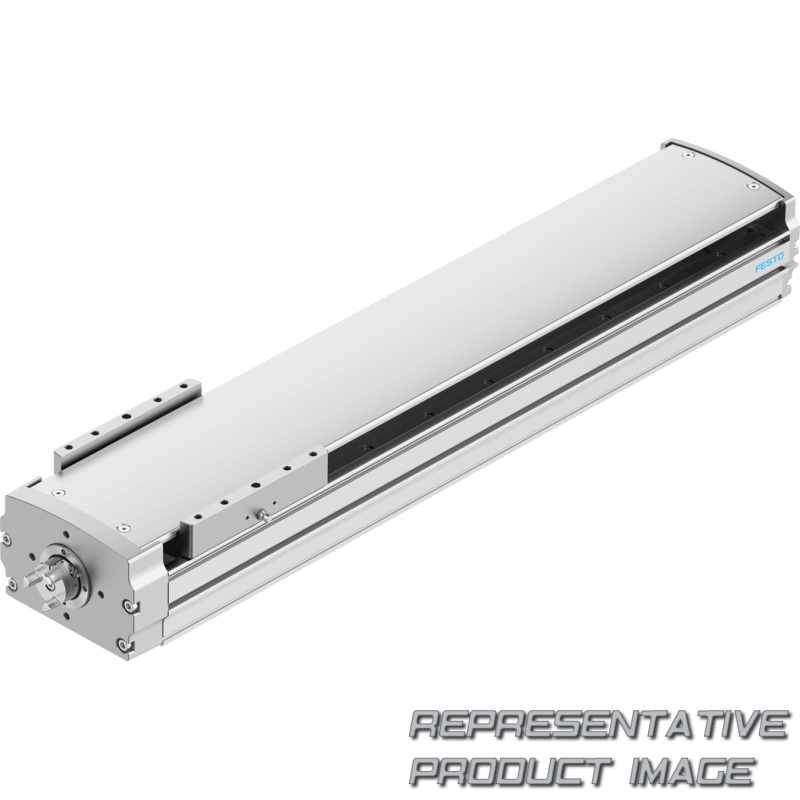

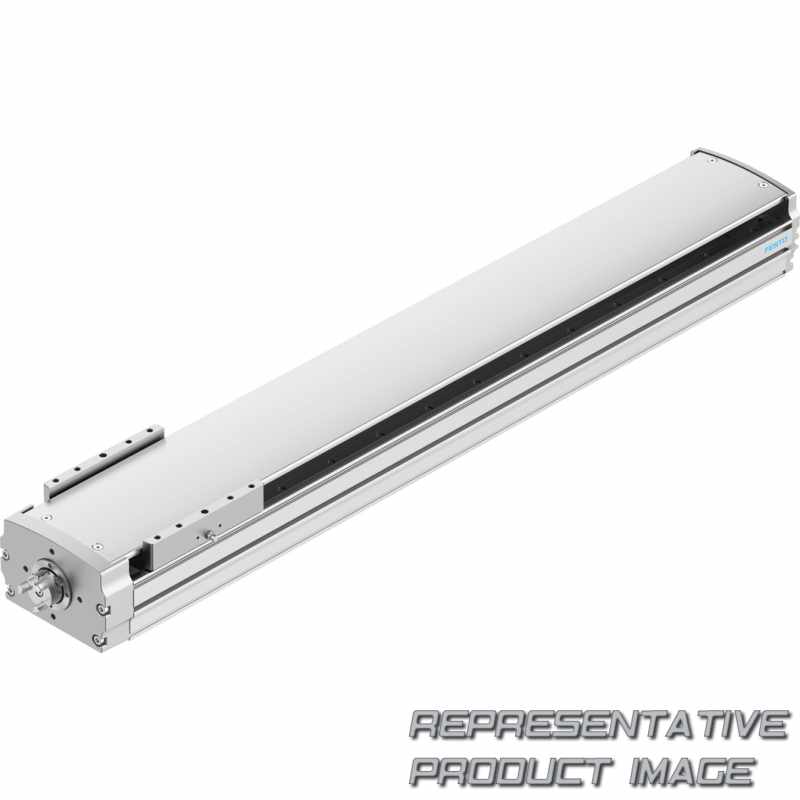

| Design | Electromechanical linear axis With ball screw | ||
| Mounting position | optional | ||
| Spindle diameter | 16 mm | ||
| Stroke reserve | 0 mm | ||
| Working stroke | 500 mm |
| Material spindle nut | Steel | ||
| Material guide rail | Steel | ||
| Material drive cover | Painted die cast aluminium | ||
| Material profile | Anodised wrought aluminium alloy | ||
| Interface code, actuator | T46 | ||
| Dynamic deflection (moving load) | 0.05% of the axis length, max. 0.5 mm | ||
| Basic weight for 0 mm stroke | 5.259 g | ||
| Moving mass | 2.019 g | ||
| Mass moment of inertia JO | 0,131 kgcm² | ||
| Mass moment of inertia JH per metre of stroke | 0,345 kgcm² | ||
| Max. feed force Fx | 1.265 N | ||
| Mz at theoretical life value of 100 km (only guide consideration) | 1.142 Nm | ||
| Mx at theoretical life value of 100 km (only guide consideration) | 1.105 Nm | ||
| Max. moment My | 310 Nm | ||
| Fz at theoretical life value of 100 km (only guide consideration) | 29.804 N | ||
| Max. force Fz | 8.090 N | ||
| Idle torque at vmin | 0,08 Nm | ||
| 2nd moment of area Iz | 6.011.000 mm⁴ | ||
| Continuous feed force | 1.265 N | ||
| Degree of protection | IP20 | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Duty cycle | 100% | ||
| Max. speed | 0,5 m/s | ||
| Max. acceleration | 15 m/s² | ||
| Symbol | 00991211 | ||
| Type of motor | Stepper motor Servo motor | ||
| Guide | Recirculating ball bearing guide | ||
| Spindle pitch | 10 mm/U | ||
| Reversing backlash theoretical | ≤ 0,15 µm | ||
| Size | 120 |
