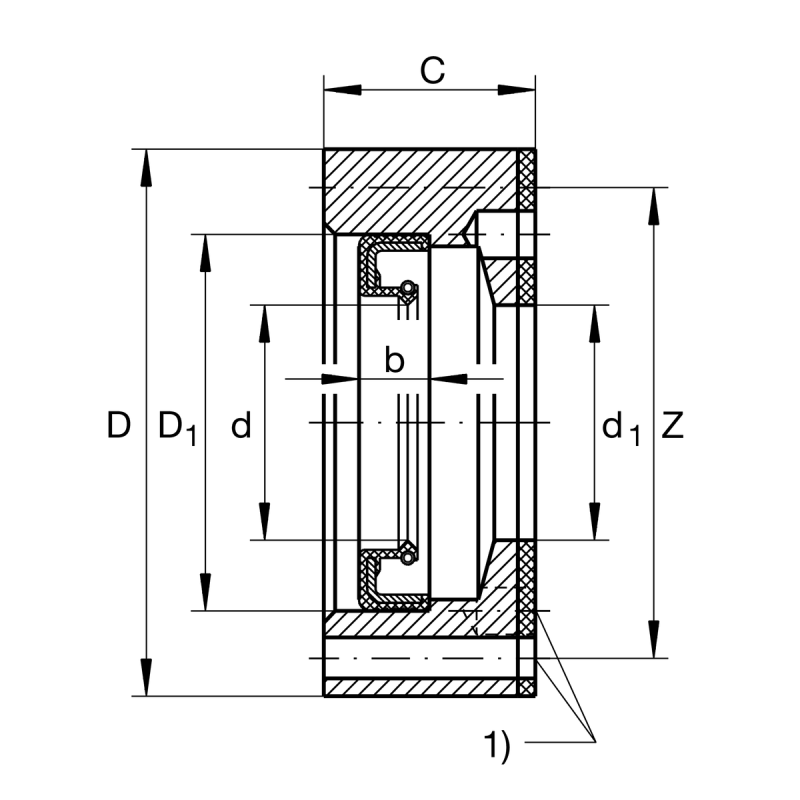

| Inner diameter centering | d1 | 78 | mm |
| Width wave carrier | C | 27.50 | mm |
| Outside diameter | D | 115 | mm |
| Pitch circle diameter (holes) | J | 106 | mm |
| Outside diameter seal | D1 | 100 | mm |
| Screw size | M3X35 |
| Inner diameter centering seal lip | d | 78 | mm |
| Width seal | b | 10 | mm |
| Number of screws | 1) | 4 |
