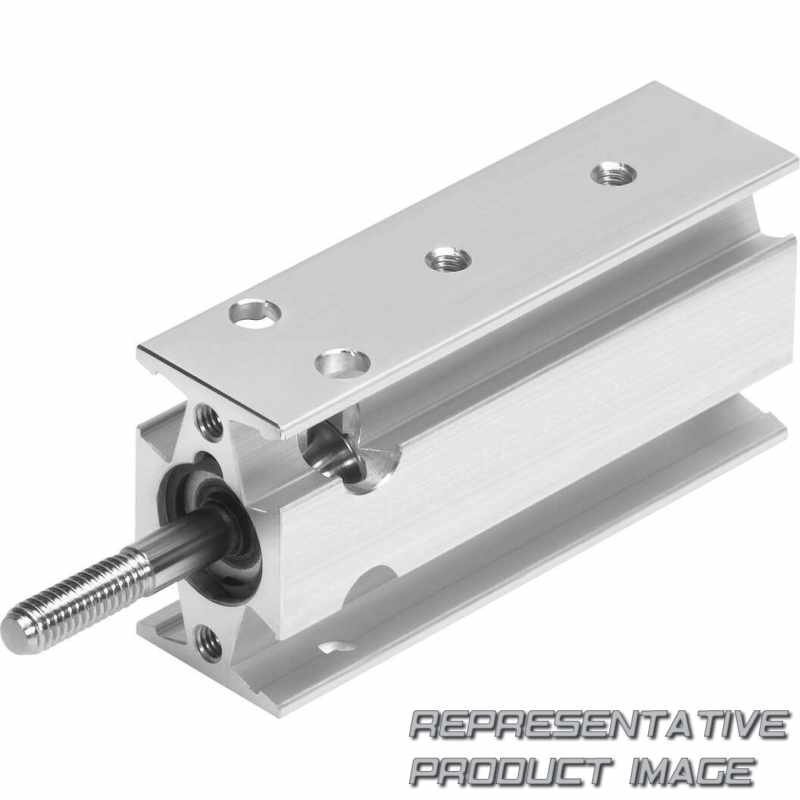

FESTO DMM
10 Products
Discover all the available configurations for the FESTO DMM product series Cylinder, multimount. Find the right product by filtering with Piston diameter [mm] and Stroke [mm].
DMM Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| DMM | DMM- - -A | Cylinder, multimount |
Typecode for Catalog Number DMM,
DMM- - -A
| 001 | Series |
|---|---|
| DMM | Cylinder, multimount |
| 002 | Protection against rotation |
| None | |
| Q | With protection against rotation |
| 003 | Piston diameter [mm] |
| 6 | 6 |
| 10 | 10 |
| 16 | 16 |
| 20 | 20 |
| 25 | 25 |
| 32 | 32 |
| 004 | Stroke [mm] |
| 5 | 5 |
| 10 | 10 |
| 15 | 15 |
| 20 | 20 |
| 25 | 25 |
| 30 | 30 |
| 40 | 40 |
| 50 | 50 |
| 005 | Function |
|---|---|
| Double-acting | |
| P | Single-acting, pulling |
| S | Single-acting, pushing |
| 006 | Piston rod type |
| Single-ended piston rod | |
| H | Through, hollow piston rod |
| T | Through piston rod |
| 007 | Cushioning |
| None | |
| P | Elastic cushioning rings/plates on both sides |
| 008 | Position sensing |
| A | For proximity sensor |
| 009 | Temperature range |
| Standard | |
| T1 | Heat-resistant seals max. 120°C |
| 010 | Special material properties |
| None | |
| F1A | Recommended for production facilities for the manufacture of lithium-ion batteries |
