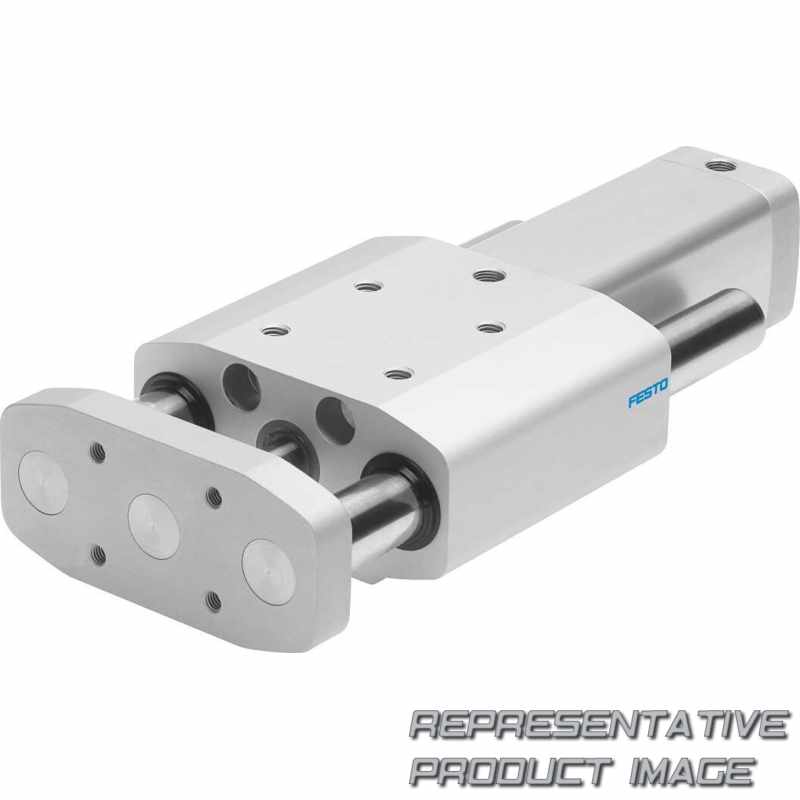

FESTO DGRF
26 Products
Discover all the available configurations for the FESTO DGRF product series Guided drive, double-acting, clean design. Find the right product by filtering with Piston diameter [mm], Stroke [mm], Cushioning, Position sensing, Sensor mounting, external and Scraper variant.
DGRF Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| DGRF | DGRF-C-GF- - - | Guided drive, double-acting, clean design |
Typecode for Catalog Number DGRF,
DGRF-C-GF- - -
| 001 | Series |
|---|---|
| DGRF | Guided drive, double-acting, clean design |
| 002 | Product version |
| C | Easy-to-clean design |
| 003 | Guide |
| GF | Plain bearing |
| 004 | Piston diameter [mm] |
| 20 | 20 |
| 25 | 25 |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 005 | Stroke [mm] |
| ... | 10 ... 400 |
| 006 | Cushioning |
|---|---|
| P | Elastic cushioning rings/plates on both sides |
| PPS | Pneumatic cushioning, self-adjusting at both ends |
| PPV | Pneumatic cushioning, adjustable at both ends |
| 007 | Position sensing |
| None | |
| A | For proximity sensor |
| 008 | Sensor mounting, external |
| None | |
| R | Mounting rail for sensors |
| 009 | Scraper variant |
| None | |
| A3 | For unlubricated operation |
