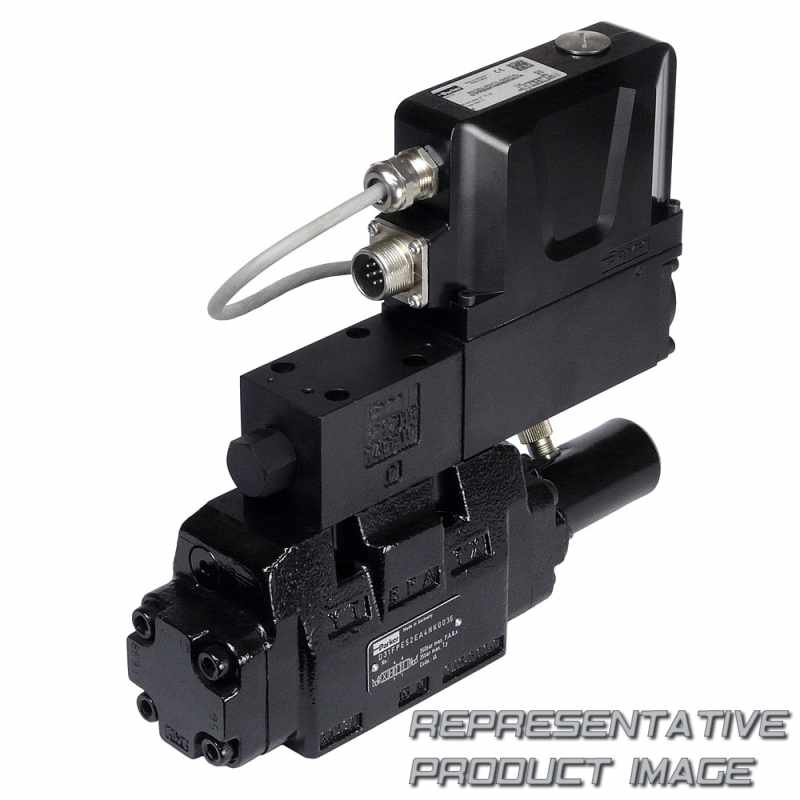

PARKER D31FPE52EC2NB70

Name: D31FPE52EC2NB70 PARKER
Brand: PARKER
SKU: 803371-en-eur
Price: 6271.97 EUR
Availability: SoldOut

6,271.97 € ~~9,617.02 €~~ -34%

Limited stock only available on quotation

Specifications

max. pressure	350 bar
max. flow	250 l/min

Seal	nbr
Weight	11.30Kg

body material		cast iron
Mounting type		subplate mounting
for fluid type		hydraulic oil according to din 51524 ... 535
maximum operating temperature		50 °c
maximum operating pressure		350 bar
electronics type		onboard electronics
maximum flow rate		250 l/min
spool type		zerolap
spool code		e52
signal input		0-±10 v
pilot inlet / drain locations		external/external
port connection		ng10 / cetop 05
seal material		nbr

function		0-10 v = p-b
product series		proportional dc valve
minimum operating temperature		-20 °c
Weight		11.3 kg
actuation type		vcd®-actuator
operation type		pilot
Flow direction		0-10 v = p-b
valve option		standard and regenerative valve function
defined spool position at power down		center position
pressure differential (bar)		5
connection type		6+pe + enable
flow rate		120 l/min
