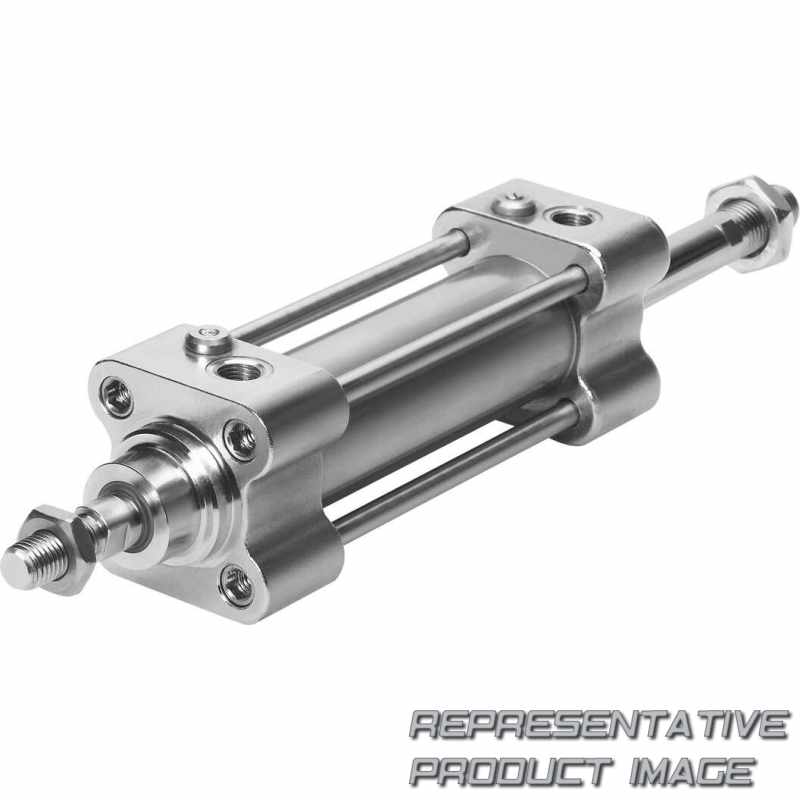

FESTO CRDNG
367 Products
Discover all the available configurations for the FESTO CRDNG product series Standard-based cylinder, double-acting, based on ISO 15552, stain- less steel. Find the right product by filtering with Piston diameter [mm], Stroke [mm] and Temperature range.
CRDNG Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| CRDNG | CRDNG- - -PPV-A | Standard-based cylinder, double-acting, based on ISO 15552, stain- less steel |
Typecode for Catalog Number CRDNG,
CRDNG- - -PPV-A
| 001 | Series |
|---|---|
| CRDNG | Standard-based cylinder, double-acting, based on ISO 15552, stain- less steel |
| 002 | Piston diameter [mm] |
| 32 | 32 |
| 40 | 40 |
| 50 | 50 |
| 63 | 63 |
| 80 | 80 |
| 100 | 100 |
| 125 | 125 |
| 003 | Stroke [mm] |
|---|---|
| ... | 10 ... 2000 |
| 004 | Cushioning |
| PPV | Pneumatic cushioning, adjustable at both ends |
| 005 | Position sensing |
| A | For proximity sensor |
| 006 | Temperature range |
| Standard | |
| S6 | Heat-resistant seals max. 120 °C |
