AM30 INA

INA
Bearings
Spare Parts and Accessories
LockNuts
AM30

INA AM30

0077062600000

M30X1,5 x 52mm x 20mm

101.24 € (vat. excl.) ~~129.56 €~~ -21%

50+ pcs. with 1 to 3 days delivery to France

Specifications

Width	20mm
Inner Diameter	M30X1,5

Outer Diameter	52mm
Weight	190.55g

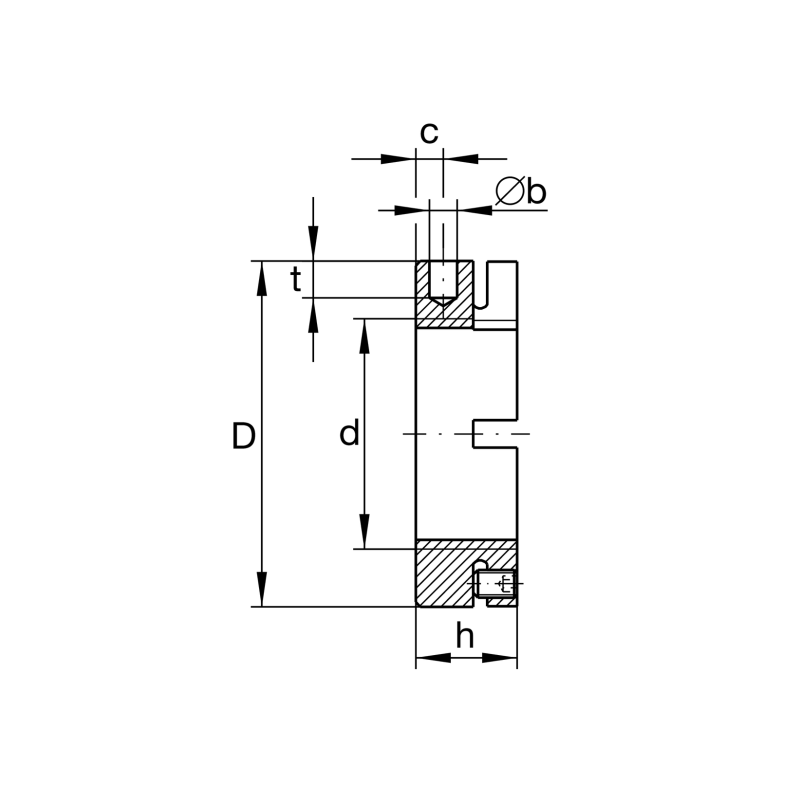

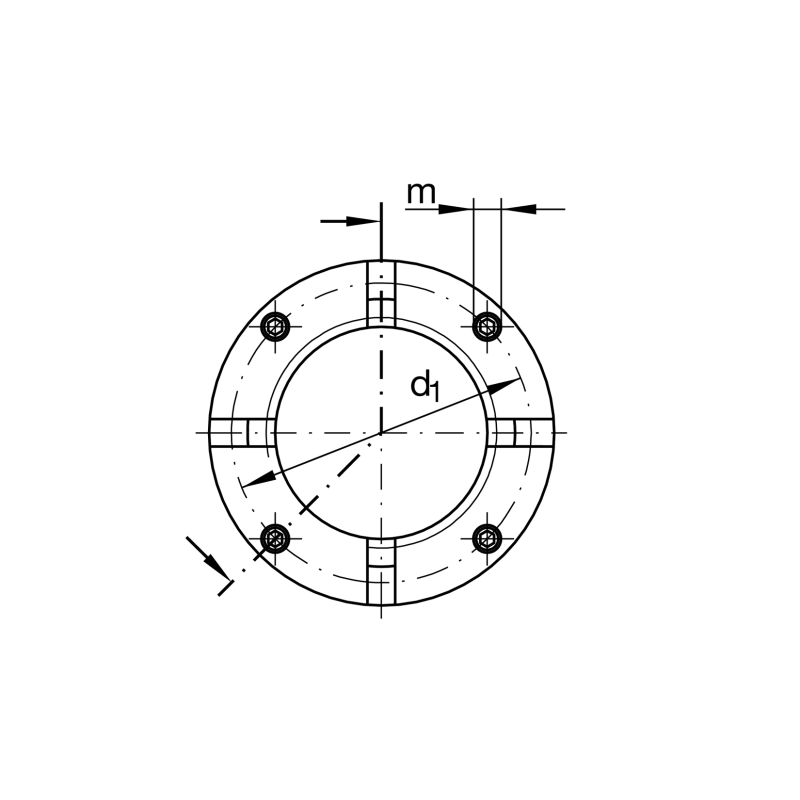

Dimensions

Dimensions

Bore diameter blind hole	b	5	mm
Pitch circle diameter 1 (holes)	d₁	45	mm
Threaded - threaded pin	m	M6

Depth blind hole	t	7	mm
Distance bore	c	6	mm

Main Dimensions & Performance Data

Thread	G	M30X1,5
Height	T	20	mm
Breakawag	M_L	51.62	Nm
Mass moment of inertia	M_m	0.86	kg * cm²

Outside diameter	D	52	mm
Breaking load, axial	F_aB	250,000
Mounting torque reference	M_AL	23.60	Nm

Mounting dimensions

Mounting torque set screw	M_m	3.69	Nm
