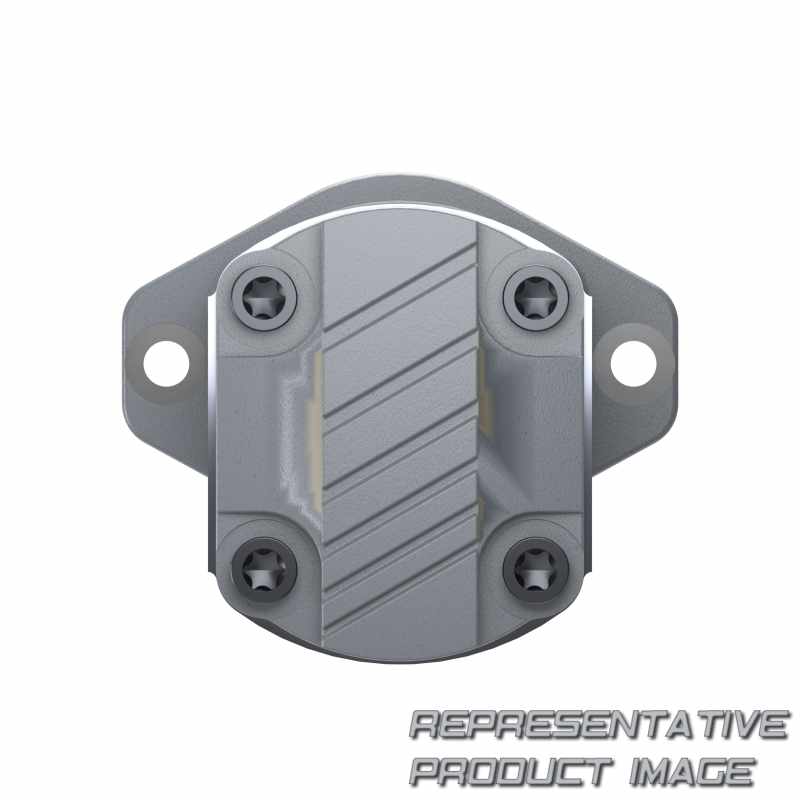

| Rear cover | Standard | ||
| port connection | SAE Split flange, UNC thread | ||
| Series | Bearing diameter 26 mm | ||
| function | Pump | ||
| Application | general | ||
| Housing Material | Aluminum | ||
| Direction of rotation | Clockwise rotation | ||
| Maximum rotational speed | 2300 rpm | ||
| Nominal size | 56 cm³/rev |
| Sealing Material | NBR | ||
| Version | Corrosion resistant, pinned | ||
| model | Model G (22.5 ... 56 cm³/rev) | ||

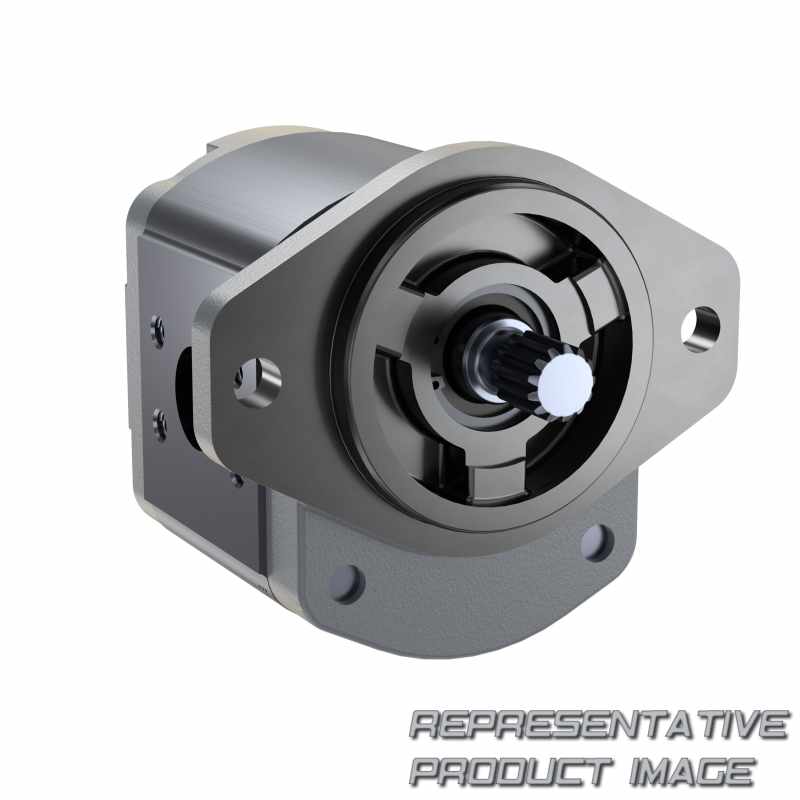

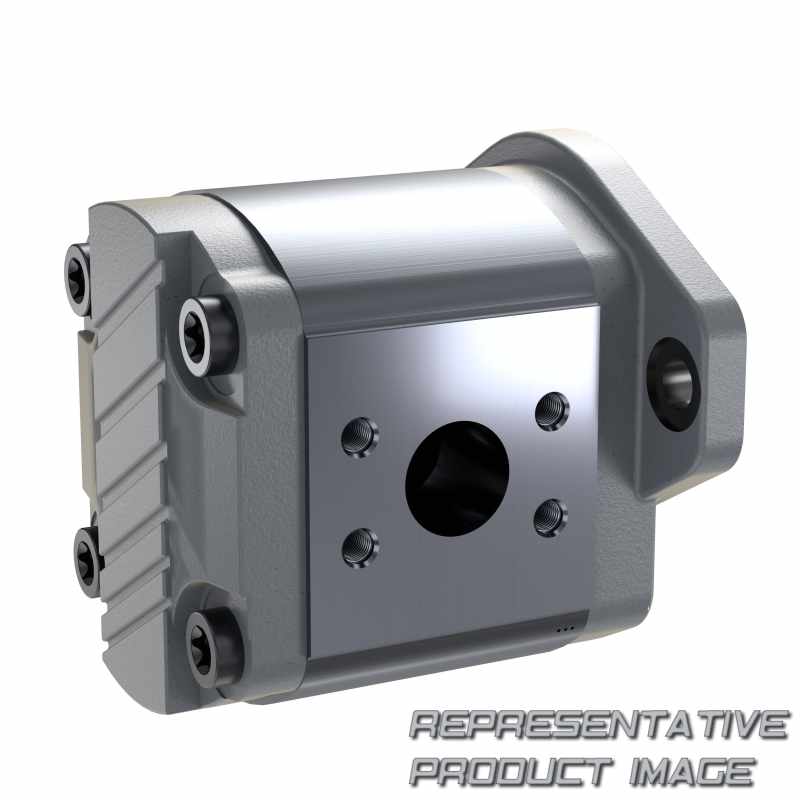

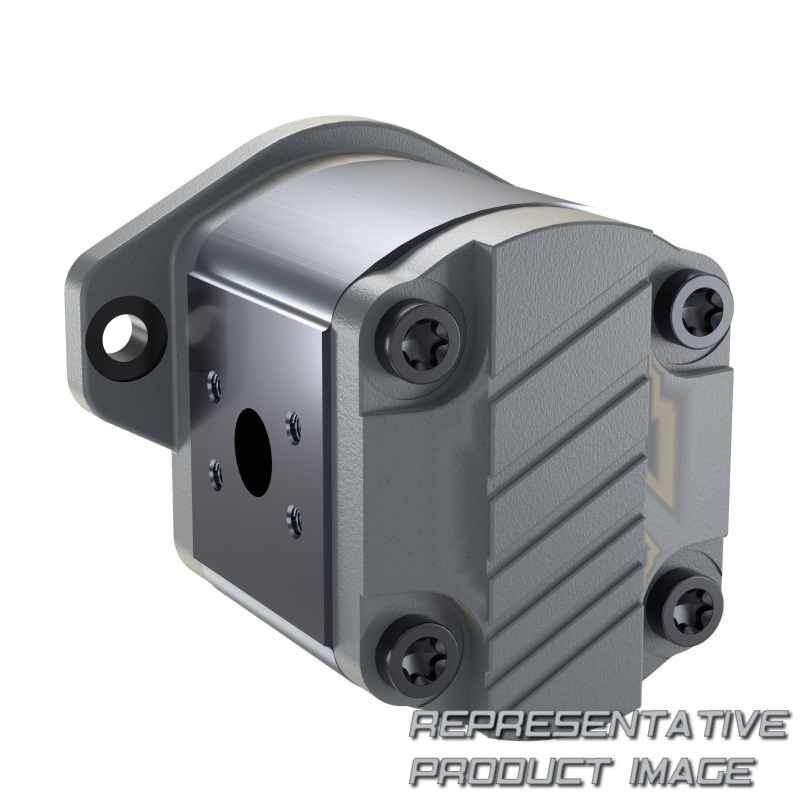

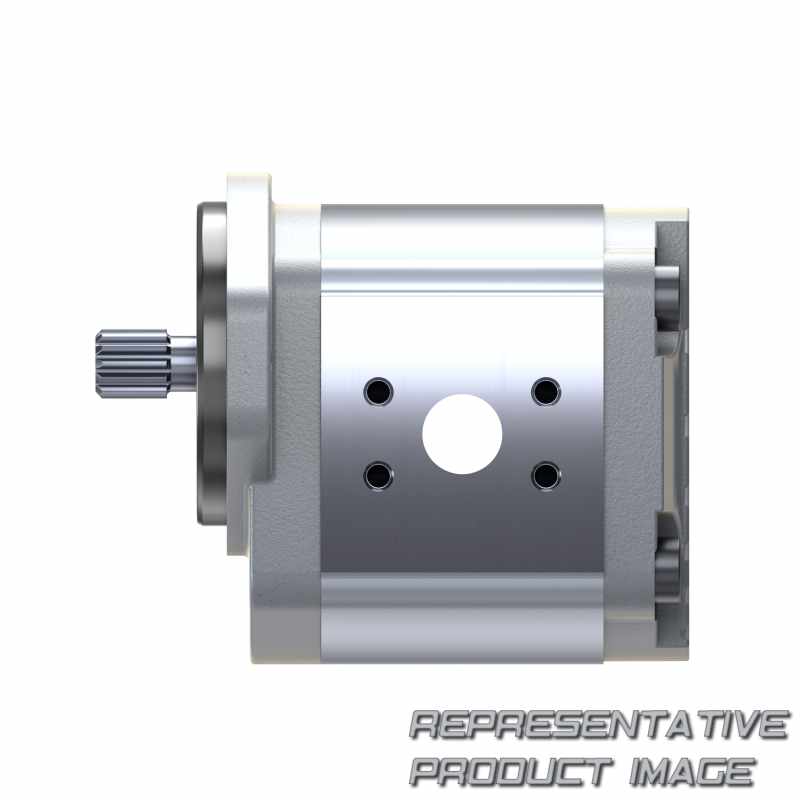

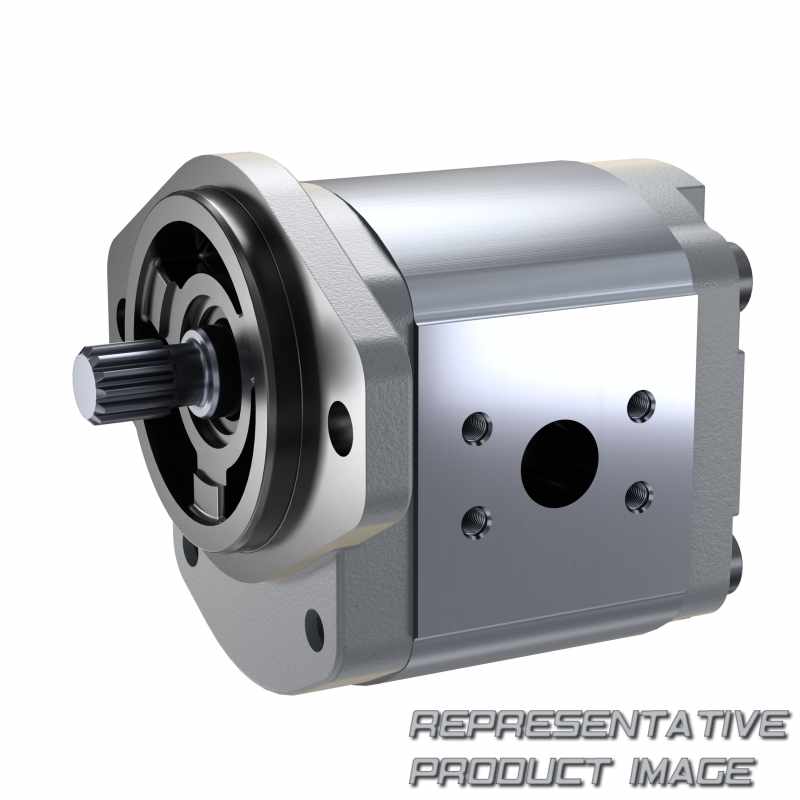

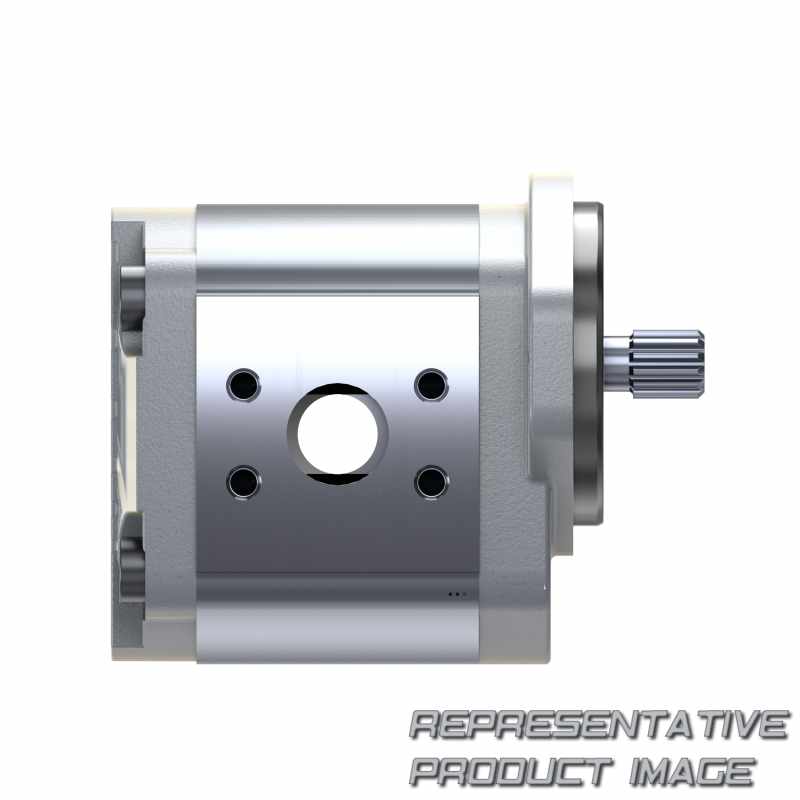

| product | External Gear Unit | ||
| Noise level | Standard noise level | ||

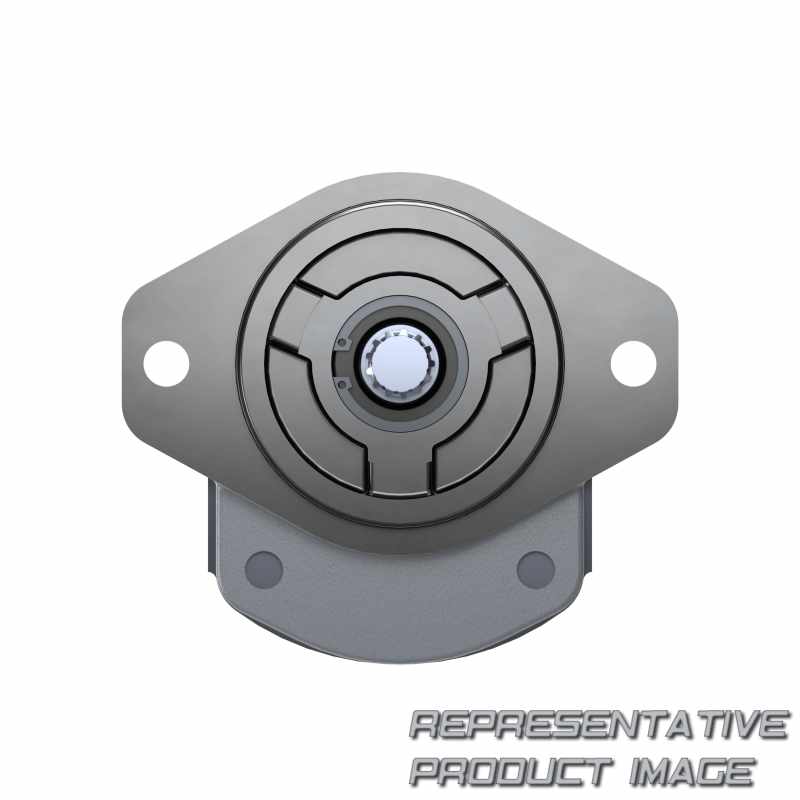

| Front cover | SAE J744 101-2 (B) 2-bolt flange | ||
| Drive shaft | Spline shaft SAE J744 22-4 (13T 16/32DP) | ||
| Max. intermittent pressure | 230 bar |
