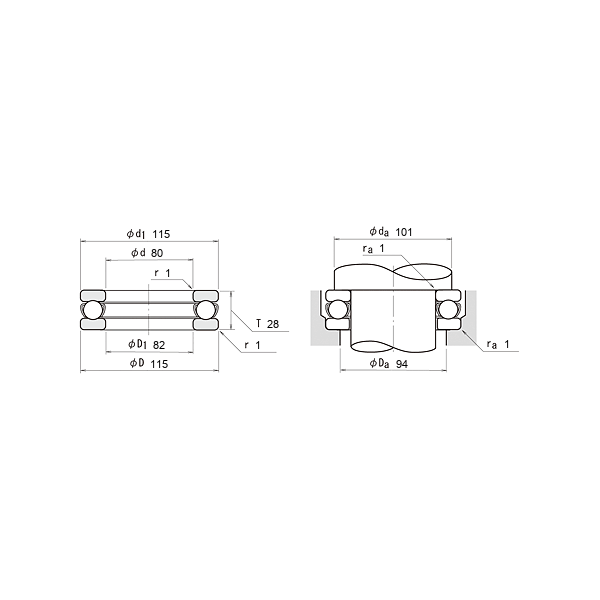

| Bore diameter | d | 80 | mm |
| Height | T | 28 | mm |
| Basic static load rating, axial | C0a | 630,000 | |
| Limiting speed | nG | 2,900 |
| Outside diameter | D | 115 | mm |
| Basic dynamic load rating, axial | Ca | 201,000 | |
| Fatigue load limit, axial | Cua | 61,000 | |
| Reference speed | nϑr | 980 | 1/min |
| Minimum diameter shaft shoulder | da min | 112 | mm |
| Maximum recess radius | ra max | 1 | mm |
| Maximum diameter of housing shoulder | Da max | 84 | mm |
| Rip diameter shaft washer | d1 | 115 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
