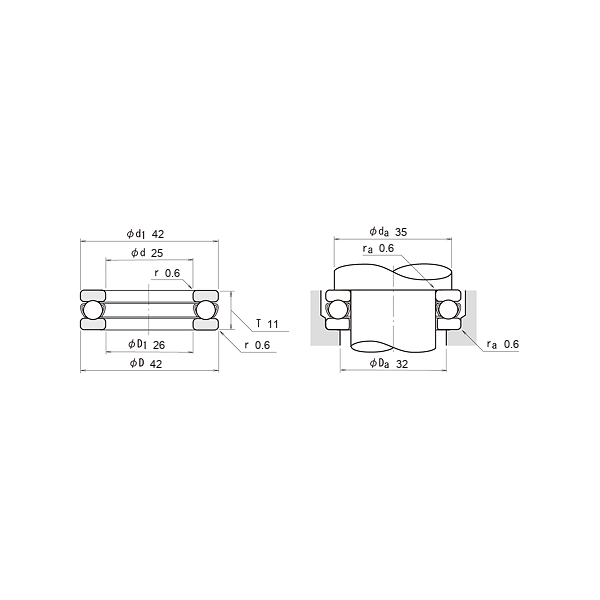

| Bore diameter | d | 25 | mm |
| Height | T | 11 | mm |
| Basic static load rating, axial | C0a | 76,000 | |
| Limiting speed | nG | 8,600 |
| Outside diameter | D | 42 | mm |
| Basic dynamic load rating, axial | Ca | 33,000 | |
| Fatigue load limit, axial | Cua | 7,200 | |
| Reference speed | nϑr | 3,500 |
| Minimum diameter shaft shoulder | da min | 41 | mm |
| Maximum recess radius | ra max | 0.60 | mm |
| Maximum diameter of housing shoulder | Da max | 26 | mm |
| Rip diameter shaft washer | d1 | 42 | mm |
| Minimum chamfer dimension | rmin | 0.60 | mm |
