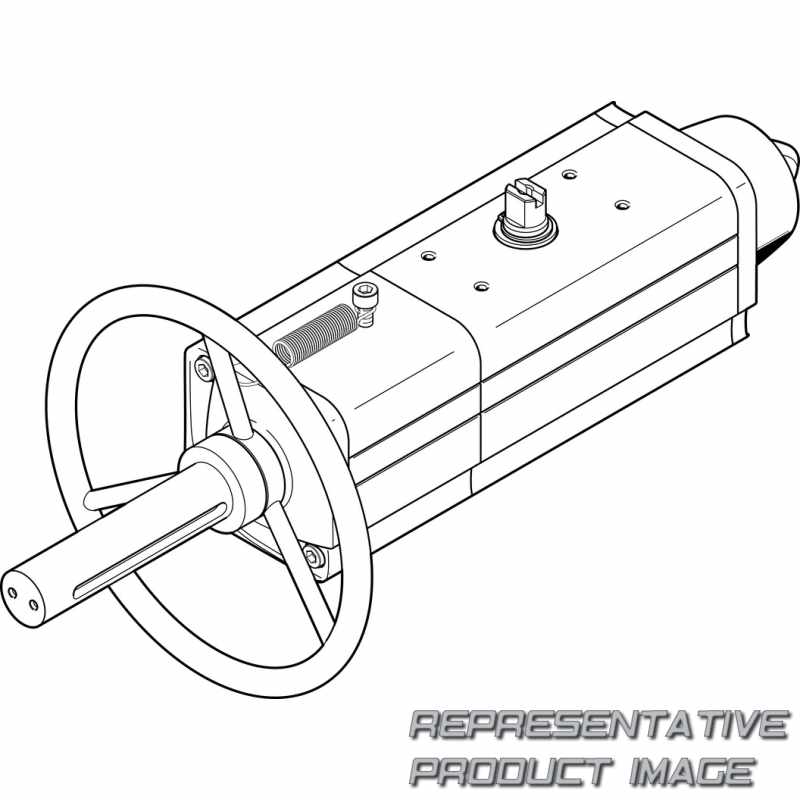

FESTO 8005034 semi-rotary drive

Name: 8005034 FESTO
Brand: FESTO
SKU: 735321-en-eur
Price: 1019.27 EUR
Availability: InStock

DAPS-0120-090-RS1-F0710-MW

1,019.27 €

available with 3 to 7 days delivery to United States

Specifications

Series (DAPS)	Semi-rotary drive
Size of valve actuator (0120)	120
Swivel angle (090)	90
Closing direction (R)	Closes to the right
Function (S)	Single-acting, pushing
Spring force (1)	For connecting pressure of 2.8 bar

Material number shaft		1.43
Material screws		High-alloy steel
Material seals		FPM NBR PUR
Note on materials		RoHS-compliant
Shaft connection		T22
Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°		5,6 l
Spring return torque at 90° swivel angle		60 Nm
Spring return torque at 0° swivel angle		40 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Explosion ignition protection type for dust		Ex h IIIC T85°C...T200°C Db X
ATEX category dust		II 2D
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
CE mark (see declaration of conformity)		To EU Explosion Protection Directive (ATEX)
Operating pressure		2,8 bar ... 8,4 bar
Safety Integrity Level (SIL)		Up to SIL 2 High Demand mode To SIL 2 Low Demand mode
Symbol		00991266
Position detection		Without
Mode of operation		Single-acting
Cushioning		No cushioning
Note on end-position adjusting range		One end position optionally adjustable
Swivel angle		92 deg
Size of valve actuator		120

Material shaft		High-alloy steel
Material housing		Wrought aluminium alloy
Material cover		Wrought aluminium alloy
Pneumatic connection		G1/8
Product weight		9.000 g
Spring strength		1
Spring return torque at 50° swivel angle		30 Nm
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion ambient temperature		-50°C <= Ta <= +60°C
Explosion ignition protection type for gas		Ex h IIC T6...T3 Gb X
ATEX category gas		II 2G
CE marking (see declaration of conformity)		To UK EX instructions
Nominal operating pressure		5,6 bar
Supply pressure for spring strength		2,8 bar
Valve connection conforms to standard		VDI/VDE 3845 (NAMUR)
Closing direction		Closes to the right
Design		Scotch yoke system
Mounting position		optional
Fitting connection conforms to standard		ISO 5211
Shaft connection depth		24,8 mm
Flange hole pattern		F07 F10
