| Bore diameter | d | 40 | mm |
| Outside diameter | D | 80 | mm |
| Width | B | 18 | mm |
| Basic dynamic load rating, axial | Ca | 39,000 | |
| Fatigue load limit, axial | Cua | 4,800 | |
| Thermally safe operating speed | nϑ | 2,800 |
| Bore diameter lower tolerance | -0.01 | mm | |
| Outside diameter lower tolerance | -0.01 | mm | |
| Width lower tolerance | -0.12 | mm | |
| Basic static load rating, axial | C0a | 106,000 | |
| Limiting speed for grease lubrication | nG Grease | 4,900 |
| Diameter shaft | da | 53.50 | mm |
| Diameter shaft clearance | da | h12 |
| Minimum chamfer dimension | rmin | 1.10 | mm |

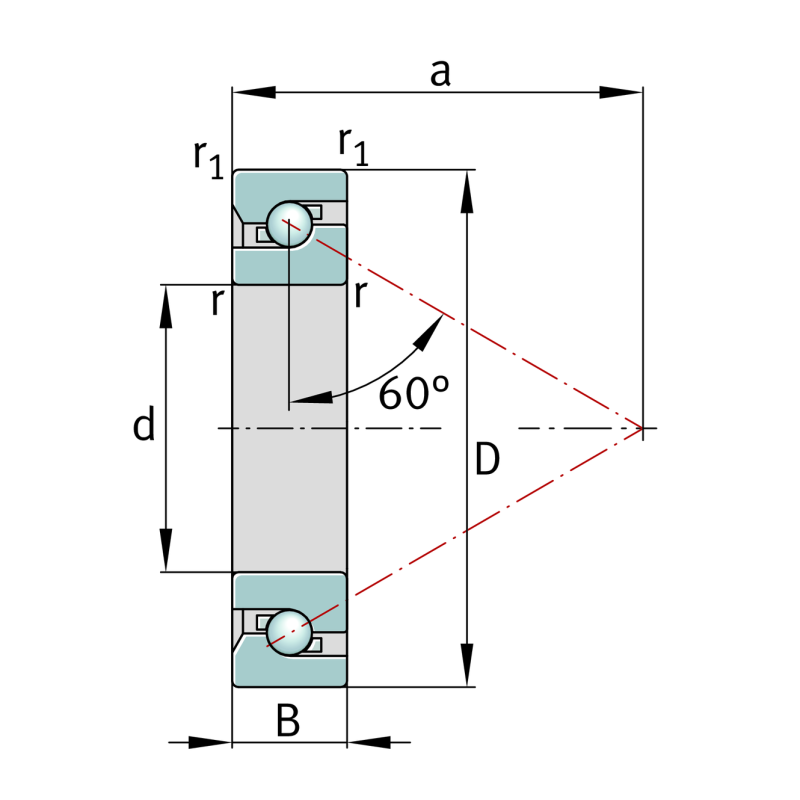

| Contact angle | α | 60 | ° |
| Distance between the apexes of the pressure cones | a | 62.50 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | BSA208 C-GA (SKF) |
