608ZZC2/5K NTN

NTN
Bearings
Ball Bearings
Deep groove ball bearings
608ZZC2/5K

NTN 608ZZC2/5K

5.74 € (vat. excl.) 6 pcs. with 1 to 3 days delivery to France

Specifications

Inner Diameter	8mm
Outer Diameter	22mm

Weight	12g

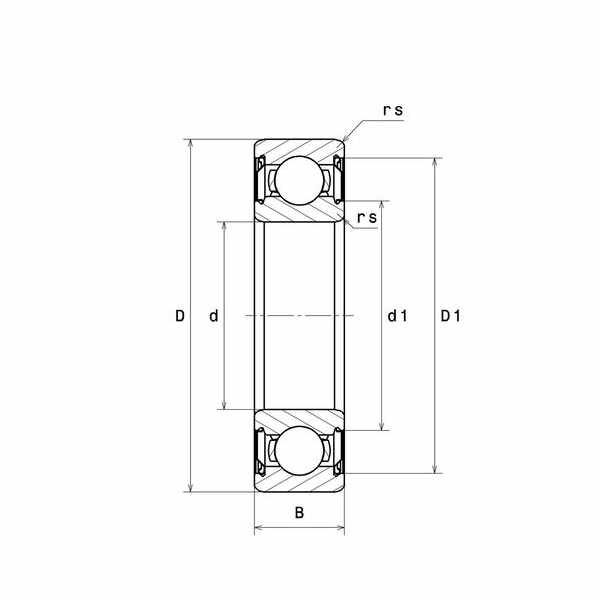

Technical data

Brand		ntn
Da max - Max shoulder diameter OR		20 mm
da min - Min shoulder diameter IR		10 mm
Tmin - Min operating temperature		-40 °C
f0 - Coefficient		12.50
C0 - Static load		1,4 kN
mass		0,012 kg
rs - Min fillet radius		0,3 mm
D - External diameter		22 mm

ra max - Max shaft & housing fillet radius		0,3 mm
da max - Max shoulder diameter IR		12,2 mm
Tmax - Max operating temperature		150 °C
N lim - Grease lubrication limit speed		32000 tr/min
Cu - Fatigue limit load		0,097 kN
C - Dynamic load		3,7 kN
Radial clearance class		C2
B - Bearing/Inner ring width		7 mm
d - Internal diameter		8 mm
