| activation | pneumatically | ||

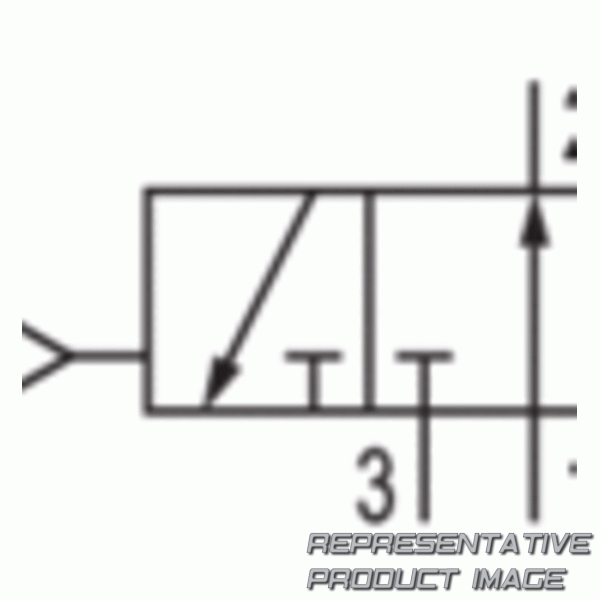

| switching principle | 3/2 | ||
| actuating control | single air pilot | ||
| connection type | pipe connection | ||
| working pressure max | 8 bar | ||
| valve type | poppet valve | ||
| control pressure min. | 3 bar | ||
| max. ambient temperature | 60 °c | ||
| max. medium temperature | 60 °c | ||
| max. particle size | 5 µm | ||
| oil content of compressed air max. | 1 mg/m³ | ||
| compressed air connection, exhaust | Ø 8x1 | ||
| Weight | 0.128 kg |
| nominal flow qn | 750 l/min | ||
| return type | with spring return | ||
| compressed air connection output | Ø 8x1 | ||
| working pressure min. | 0.5 bar | ||
| Sealing principle | soft seal | ||
| blocking principle | single valve | ||
| min. ambient temperature | -15 °c | ||
| min. medium temperature | -15 °c | ||
| Medium | compressed air | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| version pneumatic port | no | ||
| compressed air connection pilot exhaust | Ø 4 |
