| Housing Material | die cast zinc, polyamide fiber-glass reinforced | ||
| temperature resistance | -25 °c cold-resistant | ||
| min. ambient temperature | -25 °c | ||
| Duty cycle | 100 % | ||
| compatibility index | 13, 14 | ||
| Reverse polarity protection | protected against polarity reversal | ||
| electrical connection size | en 175301-803, form a | ||
| working pressure max | 10 bar | ||
| compressed air connection | m14x1,5 | ||
| pilot | internal | ||
| actuating control | double solenoid | ||
| frame size | cd07 |
| Weight | 0.75 kg | ||
| max. ambient temperature | 50 °c | ||
| Sealing principle | soft seal | ||
| basic valve with electrical connector | basic valve without coil | ||
| pilot valve width | 30 mm | ||
| connector standard | en 175301-803:2006 | ||
| electrical connection type | plug | ||
| working pressure min. | 2 bar | ||
| nominal flow qn | 1200 l/min | ||
| Manual override | with detent | ||

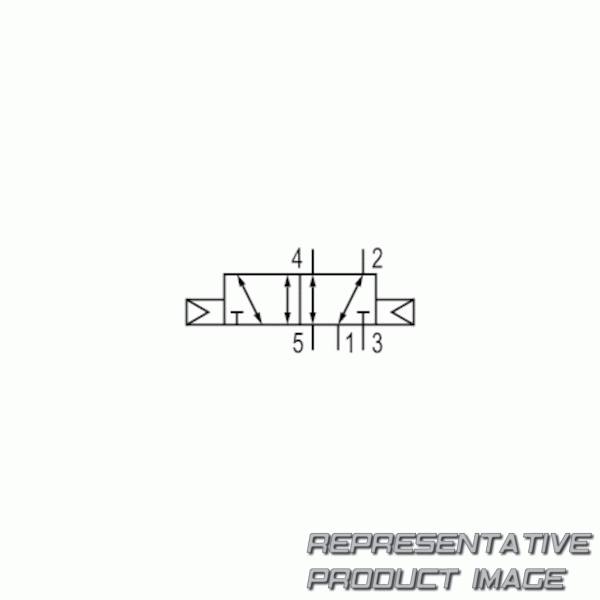

| switching principle | 5/2, double solenoid | ||
| activation | electrically |
