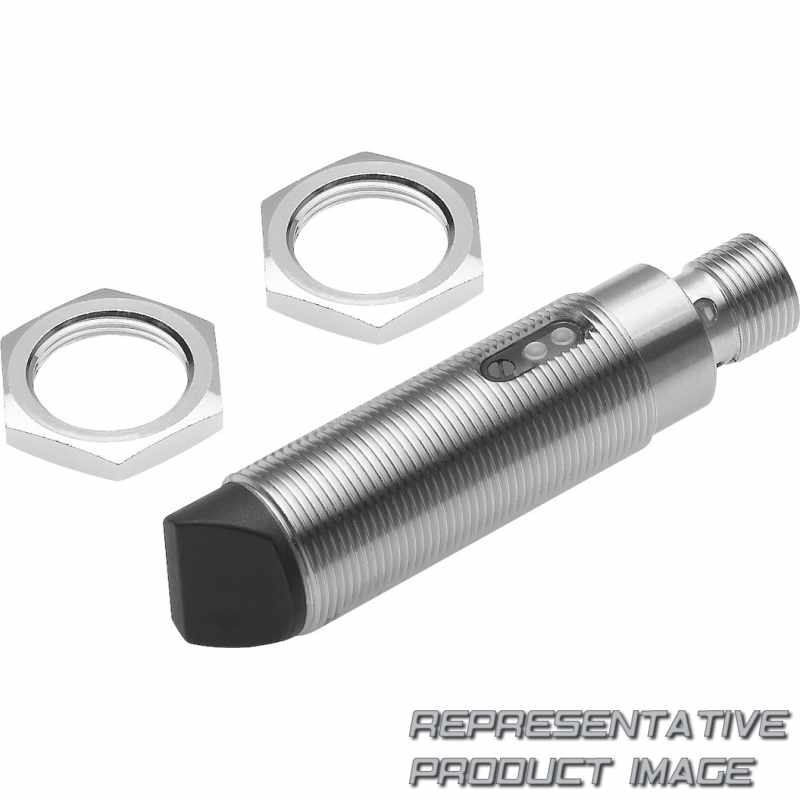

FESTO 537712 receiver

Name: 537712 FESTO
Brand: FESTO
SKU: 756101-en-eur
Price: 96.79 EUR
Availability: InStock

SOEG-E-M18W-NA-S-2L

96.79 €

available with 7 to 15 days delivery to United States

Specifications

Series (SOE)	Sensor, optoelectronic
Sensor characteristic (G)	Standard sensor
Sensor function (E)	Through-beam sensor, receiver
Design type (M18W)	Round, M18, beam exit angled

Corrosion resistance class CRC		1 - Low corrosion stress
Ambient temperature with moving cable		-5 °C ... 55 °C
Switching status indication		Yellow LED
Material housing		Brass Chrome-plated
Tightening torque		20 Nm
Size		M18x1
Reverse polarity protection		For all electrical connections
Residual ripple		20%
Short circuit current rating		Pulsed
Max. output current		200 mA
Switching element function		Antivalent
Ambient temperature		-25 °C ... 55 °C
Measurement method		Through-beam sensor Receiver
Measured variable		Position
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2

Degree of protection		IP65 IP67
Function reserve indication		Green LED
Material union nut		Brass Chrome-plated
Product weight		57 g
Type of mounting		Via lock nut
Electrical connection		4-pin M12x1 Plugs
No-load supply current		10 mA
Operational voltage range DC		10 V ... 36 V
Voltage drop		≤ 2 V
Max. switching frequency		1.000 Hz

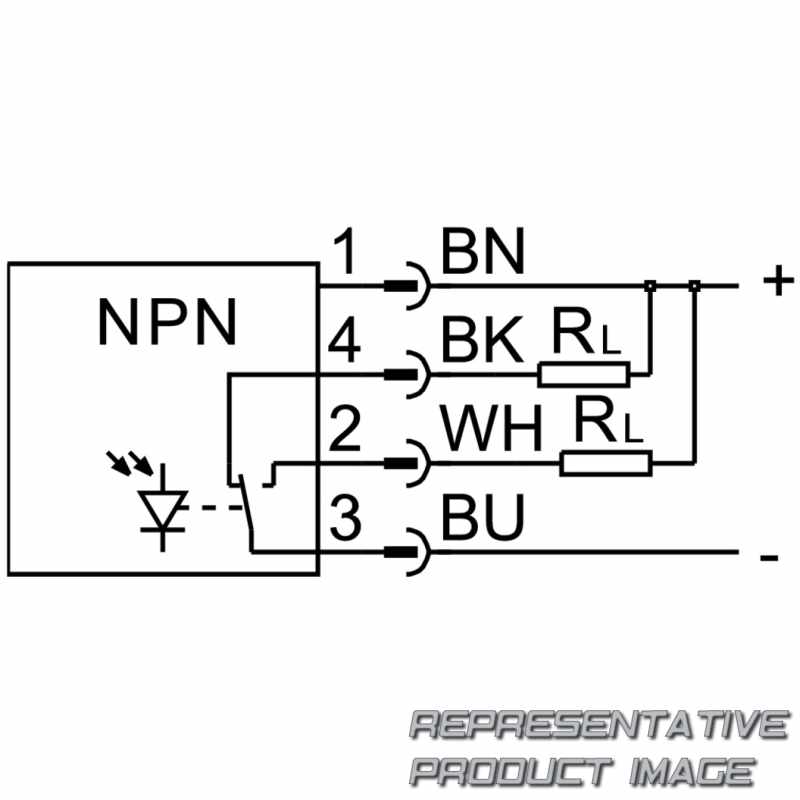

Switching output		NPN
Operating distance		20.000 mm
Measuring principle		Optoelectronic
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991636
Design		Round
