| seal material | acrylonitrile butadiene rubber | ||
| Weight | 0.38 kg | ||
| max. medium temperature | 60 °c | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 15 bar | ||
| nominal flow qn 1 to 2 | 6200 l/min | ||

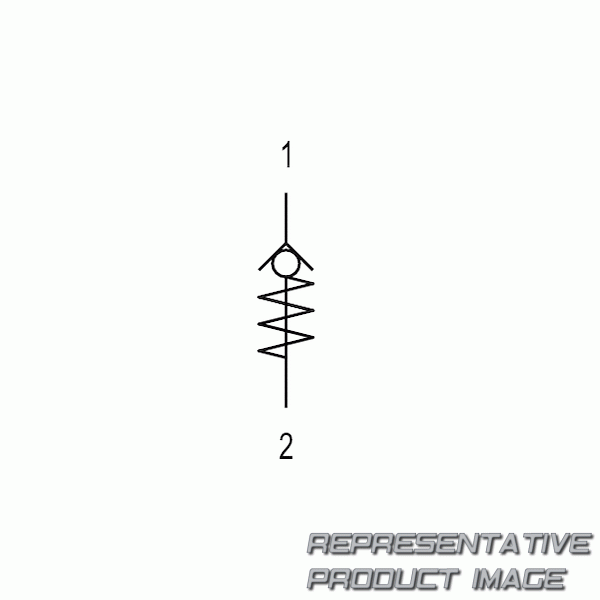

| Type | poppet valve | ||
| mounting | installing in piping | ||
| compressed air connection 1 | g 3/4 |
| Housing Material | brass | ||
| Medium | compressed air | ||
| min. medium temperature | -10 °c | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 0.5 bar | ||
| compressed air connection 2 | g 3/4 | ||
| compressed air connection type 2 | internal thread | ||
| compressed air connection type 1 | internal thread |
