| compressed air connection input | g 1/8 | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| Medium | compressed air | ||
| min. ambient temperature | 5 °c | ||
| control pressure min. | 1.5 bar | ||

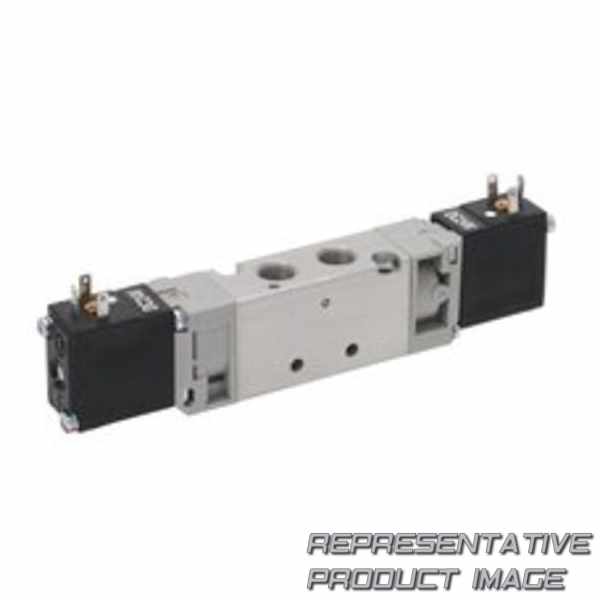

| valve type | spool valve | ||
| pilot | internal | ||
| actuating control | double solenoid | ||
| electrical connection type | plug | ||
| operational voltage ac at 50 hz | 230 v | ||
| working pressure min. | 1.5 bar | ||
| switching principle | 5/2 | ||
| activation | electrically |
| oil content of compressed air max. | 5 mg/m³ | ||
| max. particle size | 5 µm | ||
| max. ambient temperature | 50 °c | ||
| control pressure max. | 8 bar | ||
| connection type | pipe connection | ||
| pilot valve width | 18 mm | ||
| Sealing principle | soft seal | ||
| electrical connection size | en 175301-803, form c | ||
| Manual override | without detent | ||
| working pressure max | 8 bar | ||
| compressed air connection output | g 1/8 | ||
| nominal flow qn | 600 l/min |
