| min. ambient temperature | 0 °c | ||
| control pressure min. | 2.2 bar | ||
| basic valve with electrical connector | basic valve without pilot valve | ||
| compressed air connection, exhaust | vdma 02 base plate | ||
| connection type | plate connection | ||
| valve type | spool valve, positive overlapping | ||
| Standards | iso 15407-1 | ||
| Sealing principle | soft seal | ||
| electrical connection type | plug | ||
| Manual override | without detent | ||
| working pressure min. | 2.2 bar | ||
| Version | nc/nc | ||
| nominal flow qn | 450 l/min |
| control pressure max. | 10 bar | ||
| frame size | 18 mm | ||
| compressed air connection pilot exhaust | vdma 02 base plate | ||
| compressed air connection input | vdma 02 base plate | ||
| blocking principle | base plate principle, multiple | ||
| pilot valve width | 15 mm | ||
| pilot | external | ||
| electrical connection size | iso 15217, form c | ||
| Electrical connection | 2 | ||
| working pressure max | 10 bar | ||
| compressed air connection output | vdma 02 base plate | ||

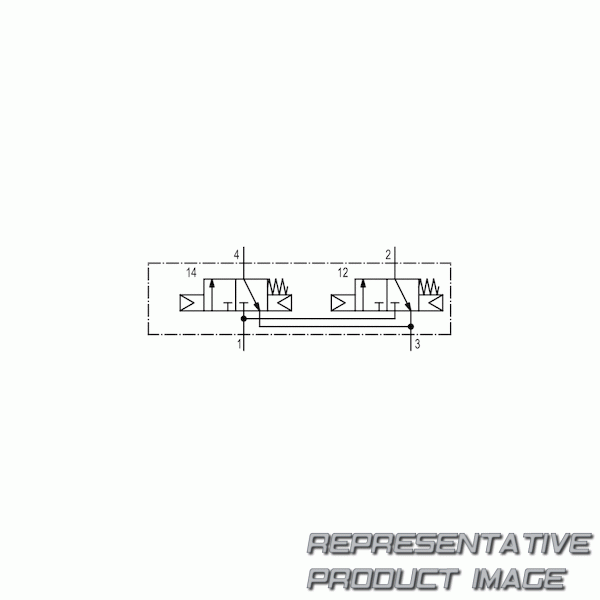

| switching principle | 2x3/2 |
