Track NTN 51220 - Price & Stock

Be the first to know: alerts when this item is back or on sale.

Notification Settings:

Stock Availability

You will be notified when the product is running low in stock.

Price alerts

Receive updates on price drops to ensure timely action when pricing improves.

I’ve read and accept the Terms & Conditions

Preferences saved! We'll notify you based on your settings.

51220 NTN

NTN
Bearings
Ball Bearings
Deep groove ball bearings
Axial deep groove ball bearings
51220

NTN 51220

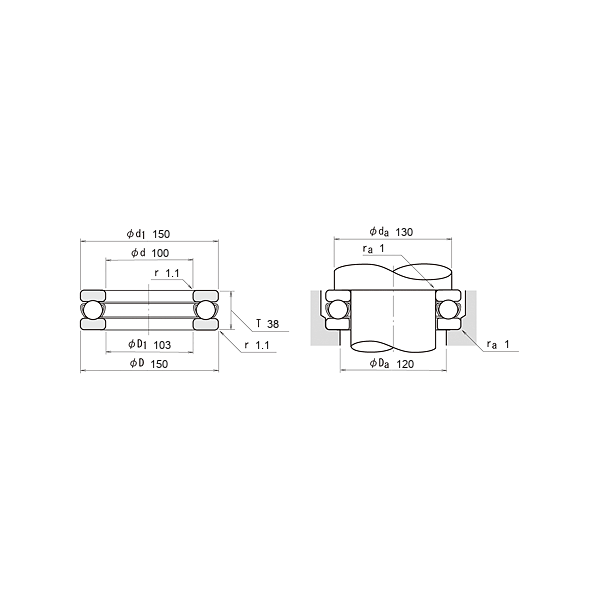

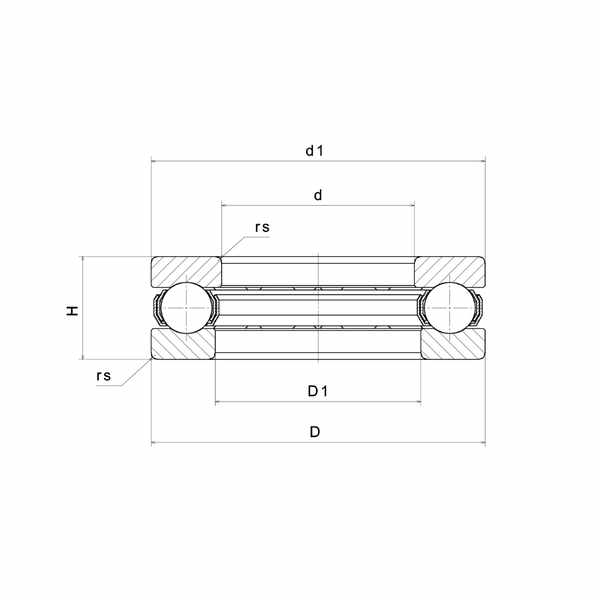

100mm x 150mm x 38mm

105.58 € (vat. excl.) ~~134.90 €~~ -21%

27 pcs. with 1 to 3 days delivery to France

Specifications

Width	38mm
Inner Diameter	100mm

Outer Diameter	150mm
Weight	2.29Kg

Technical data

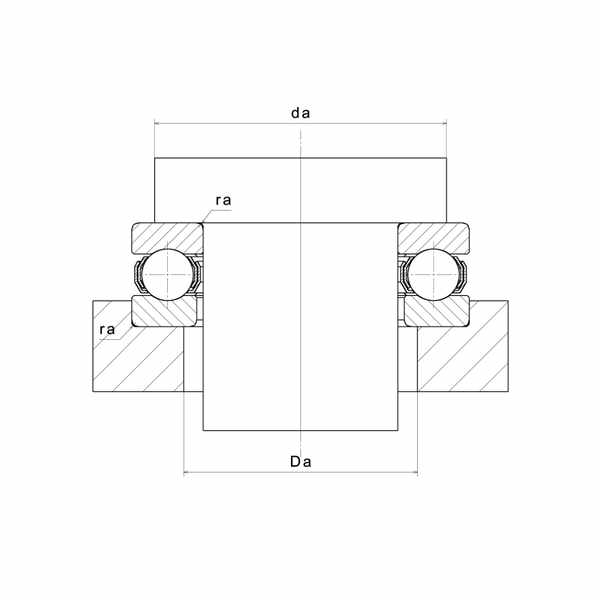

da min - Min shoulder diameter IR		130 mm
Tmax - Max operating temperature		120 °C
Nlim - Grease lubrication limit speed		1300 tr/min
Cua - Limit axial load rating		16,6 kN
Ca - Dynamic axial load rating		147 kN
Brand		NTN

Da max - Max shoulder diameter OR		120 mm
Tmin - Min operating temperature		-40 °C
Nlim - Oil lubrication limit speed		1800 tr/min
C0a - Static axial load rating		410 kN
rs - Min fillet radius		1,1 mm
