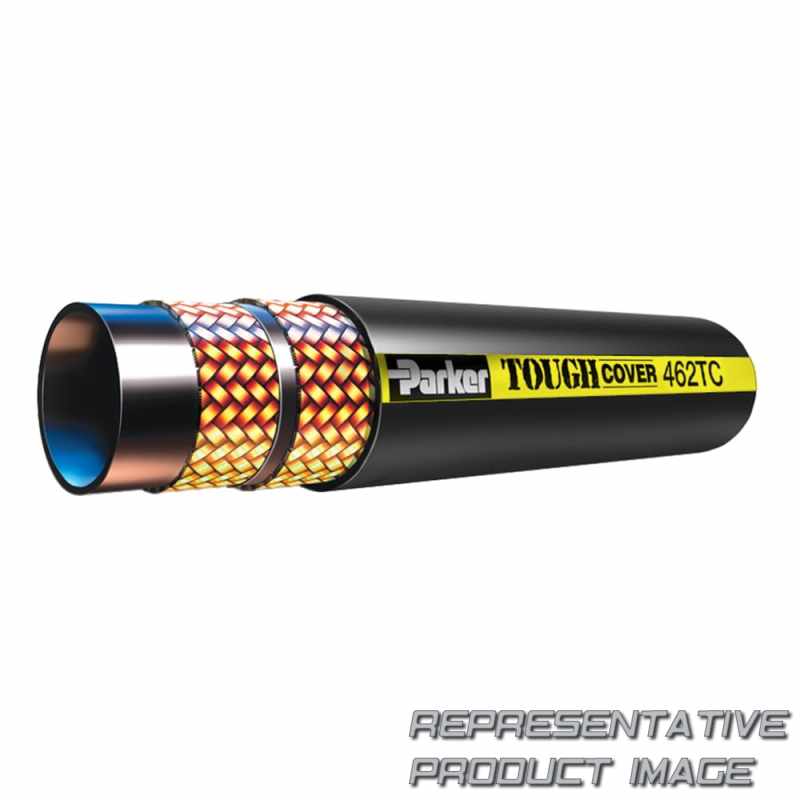

PARKER 462TC-40

Name: 462TC-40 PARKER
Brand: PARKER
SKU: 580243-en-eur
Price: 93 EUR
Availability: SoldOut

93 € /m (vat. excl.) ~~171.60 €~~ /m -45%

Limited stock only available on quotation

Specifications

Parker Elite No-Skive Compact Hose 462 has been designed for a working pressure up to 42,5 MPa and a temp. range from -40 °C up to +100 °C. The hose range is compatible with No-Skive fittings in steel and stainless steel

max. pressure	7 mpa, 1015 psi, 70 bar

Weight	3Kg

Technical data

minimum bend radius		760 mm
hose i.d. (size)		-40
Size		-40
division		polymer hose division europe
Application		demanding medium pressure hydraulic applications in all markets
product type		hydraulic hose, specialty hose
maximum operating pressure		7 mpa, 1015 psi, 70 bar
hose outside diameter		76 mm, 2.992 inch
cover color		black
maximum operating temperature		100 °c (water: 85 , air: 70), 212 °f (water: 185, air: 158)
specifications met		en 857 2sc, iso 11237 type 2sc, en 857 2sc - iso 11237 type 2sc
cover material		highly abrasion resistance msha approved
hose reinforcement material		2 high tensile steel wire braids

hose cover type		tough cover
media		petroleum & water-glycol based fluids, lubricating oils, fuels (check fuel type with our catalogue chart)., coolants i.e. glycol, lubricants
Brand		parker
industry		general industrial, off-road machinery
technology		fluid & gas handling
product style		elite no-skive compact tough cover
hose inside diameter		2-1/2 inch, 63.5 mm
design factor		4:1
compatible fitting		48 series 2 pieces
minimum operating temperature		-40 °c
materials of construction		rubber
hose inner tube material		nitrile nbr
Weight		3.00 kg/m, 2.01 lb/ft
