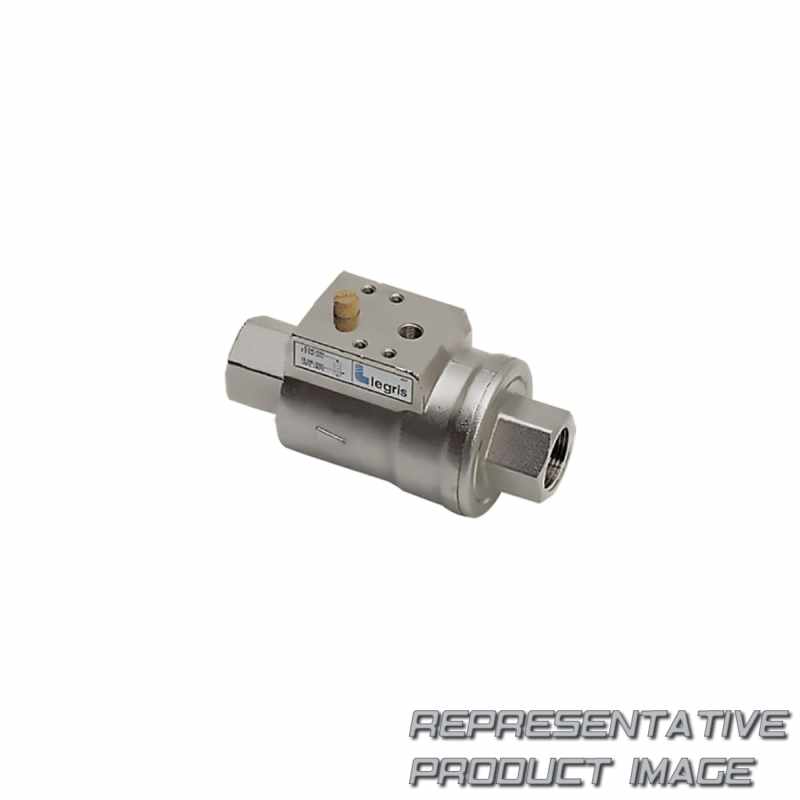

PARKER 4202 15 21 20

Name: 4202 15 21 20 PARKER
Brand: PARKER
SKU: 720753-en-eur
Price: 367.51 EUR
Availability: InStock

367.51 €

5 pcs. with 1 to 3 days delivery to United States

Specifications

max. pressure	10 bar, 1 mpa, 145.04 psi
max. flow	2.44 dm3/sec

Seal	fkm
Weight	1.09Kg

connection 1 thread size (metric)		g1/2
Brand		legris
industry		industrial manufacturing equipment
technology		fluid & gas handling, process control, pneumatics
valve type		axial
product series		axial valves
operation type		electro-pneumatic drive
maximum pilot pressure		8 bar
maximum flow rate		2.44 dm3/sec
Number of ports		2
Port size		g1/8
connection size		g1/2
orifice size		1/2 inch
for fluid type		air, oil, water
maximum operating temperature		135 °c, 275 °f
Mounting type		in-line
specifications met		di: 97/23/ec (module ped a - diameters greater than 25 mm), rohs, reachdi: 2006/42/ec (machinery directive), di: 2002/95/ec (rohs), rg: 1907/2006 (reach), di: 94/9/ec (atex) - for pneumatic operation versions
seal material		fkm
Weight		1.093 kg, 2.405 lb
region of origin		italy
Operating pressure		vacuum to 10 bar

shape		in-line
division		low pressure connectors europe division
Application		pneumatic, process control, safety, fluid control, plastic injection molding, rubber industry, textile, printing, packaging, robotics
product type		axial valves
product style		female axial valve
function		2-way, normally closed
maximum operating pressure		10 bar, 1 mpa, 145.04 psi
minimum pilot pressure		4.2 bar
flow rate		2.44 dm3/sec
port type		thread
connection type		bspp
port connection		g1/8
configuration		2/2
media		air, oil, water
minimum operating temperature		-20 °c, -4 °f
actuation type		air pilot
body material		nickel plated brass
o-ring material		fkm
quantity per box		1
vacuum pressure rating		740 mm-hg
