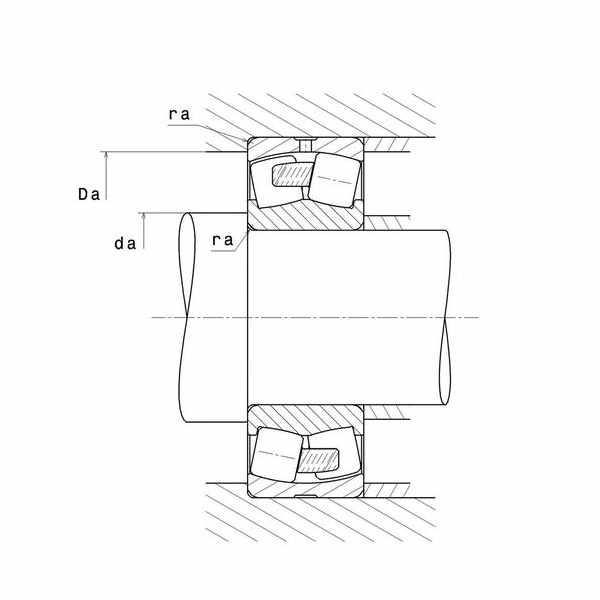

| ra max - Max shaft & housing fillet radius | 3 mm | ||
| da min - Min shoulder diameter IR | 187 mm | ||
| FTF - Characteristic cage frequency | 0,416 Hz | ||
| BPFO - Characteristic outer ring frequency | 7,078 Hz | ||
| Tmin - Min operating temperature | -40 °C | ||
| Nref - Reference thermal speed | 1200 tr/min | ||
| Y1 - Lower axial load coefficient | 2.09 | ||
| e - Coefficient | 0.32 | ||
| C0 - Static load | 2630 kN | ||
| Radial clearance class | C4 | ||
| b - Groove width | 20,25 mm | ||
| rs - Min fillet radius | 4 mm | ||
| Brand | NTN |
| Da max - Max shoulder diameter OR | 343 mm | ||
| BSF - Characteristic rolling element frequency | 5,679 Hz | ||
| BPFI - Characteristic inner ring frequency | 9,922 Hz | ||
| Tmax - Max operating temperature | 200 °C | ||
| Nlim - Mechanical Limit Speed | 1800 tr/min | ||
| Y2 - Upper axial load coefficient | 3.11 | ||
| Y0 - Static axial load coefficient | 2.04 | ||
| Cu - Fatigue limit load | 236 kN | ||
| C - Dynamic load | 2200 kN | ||
| k - Hole diameter | 10 mm | ||
| Number of lubrication holes | 3 | ||
| D1 - Inner diameter outer ring | 312,9 mm |
