2207-TVH FAG

FAG
Bearings
Ball Bearings
Self-aligning ball bearings
2207-TVH

FAG 2207-TVH

0167028320000

35mm x 72mm x 23mm

24.78 € (vat. excl.) ~~39.19 €~~ -36%

50+ pcs. with 1 to 3 days delivery to France

Replaces: 2207-TV (FAG)

Specifications

Width	23mm
Inner Diameter	35mm

Outer Diameter	72mm
Weight	389g

Dimensions
Cross references

Main Dimensions & Performance Data

Bore diameter	d	35	mm
Width	B	23	mm
Basic static load rating, radial	C_0r	9,000
Limiting speed	n_G	9,800

Outside diameter	D	72	mm
Basic dynamic load rating, radial	C_r	33,000
Fatigue load limit, radial	C_ur	570	N
Reference speed	n_ϑr	10,300

Mounting dimensions

Minimum diameter shaft shoulder	d_{a min}	42	mm
Maximum fillet radius	r_{a max}	1	mm

Maximum diameter of housing shoulder	D_{a max}	65	mm

Dimensions

Minimum chamfer dimension	r_min	1.10	mm
Shoulder diameter inner ring	d₁	45.70	mm

Shoulder diameter outer ring	D₁	62.40	mm

Manufacturer	Part Number
SKF	2207
NSK	2207 (NSK)
Schiess-Froriep	302207
GPZ Bearings	1507
Volvo	7181416
KOYO	2207 (KOYO)
MGM Bearings	2207
Marlin-Rockwell Corp.	2207E
ISO	35BS22
RIV Officine di Villar Perosa	4AAJ
Neuweg Fertigung GmbH	2207
Fischer Bearings	2207
SKC	5905997
RHP	2207
Volvo	181416
Steyr-Daimler-Puch	636045
RHP	2207TNH
Federal Bearings	2207SA
NTN	2207 (NTN)
Renault	951402207
SKC	3000533
Volvo	6600154
SKF	2207-E TN9 (SKF)
NSK	2207 E-TNG (NSK)

Related products

S2207-2RS

ZEN

151.89 €

2207-TVH-C3

FAG

24.74 €

EC525-12

AEROQUIP

110.94 €

NUP2207-E-XL-TVP2-C4

FAG

NUP2207-E-TVP2-C4

FAG

62207-A-2RSR-C3

FAG

15.58 €

62207-2RS-C3

SNR

22.65 €

4T-02476/02420

NTN

57.46 €

62207-A-2RSR

FAG

17.41 €

NU2207 ET-C3

NSK

25.17 €

NU2207 WC3

NSK

41.99 €

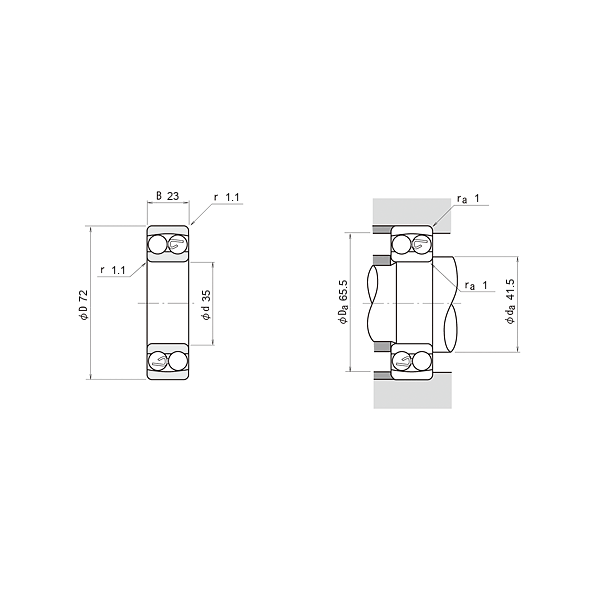

2207 C3

NSK

25.97 €

NU2207 W

NSK

37.33 €

2207-K.C3

FAG

37.66 €

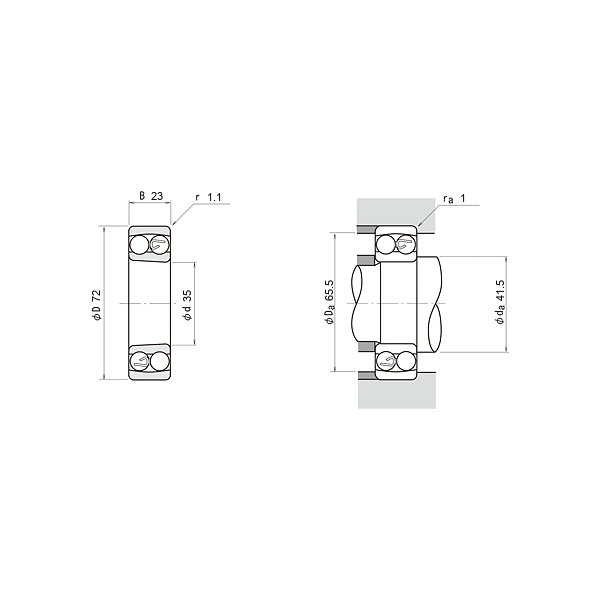

2207K C3
