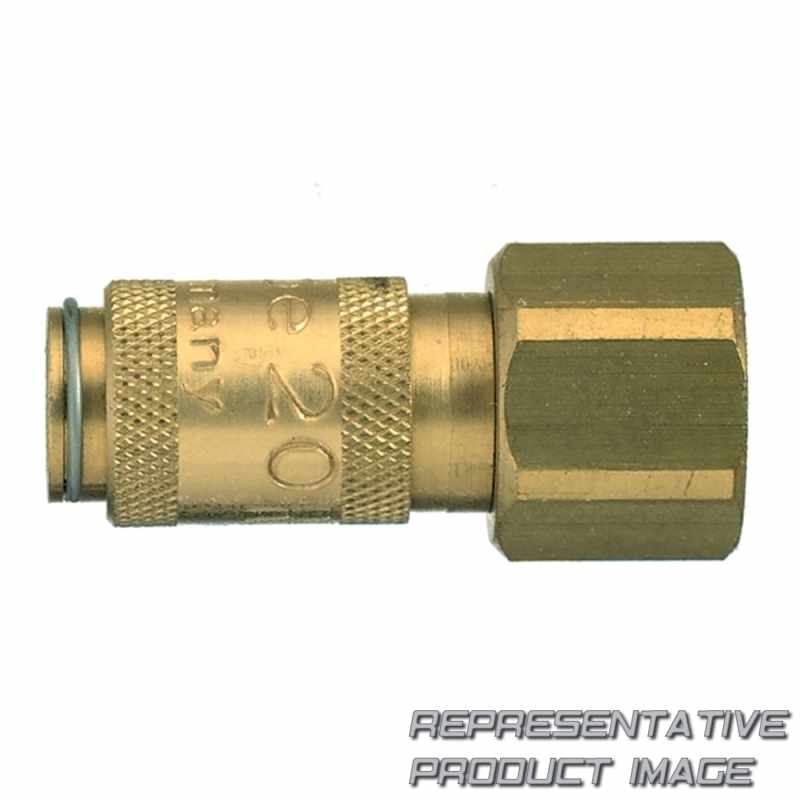

PARKER 20KBIW10MPX

24.99 € 34 pcs. with 1 to 3 days delivery to United States

Specifications

Quick coupling system with nominal diameter 2.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with an internationally used profile. Available made of brass or stainless steel.

max. pressure 35 bar
max. flow 130 l/min
Seal nbr
connection thread size (inch) 1/8
Version double shut-off
connection type female thread - parallel
Diameter 2,7 nom
Length 28 mm
seal material nbr
maximum operating temperature 100 °c
flow rate 130 l/min
external hex (mm) 12
Material brass
Type coupling
valve included yes
Outside diameter 10 mm
minimum operating temperature -20 °c
maximum operating pressure 35 bar
Application pneumatic & fluid handling
24.99 €
Stock 34 pcs.
Part number 20KBIW10MPX
Manufacturer PARKER
Quantity Unit Price
1+ 24.99 €
