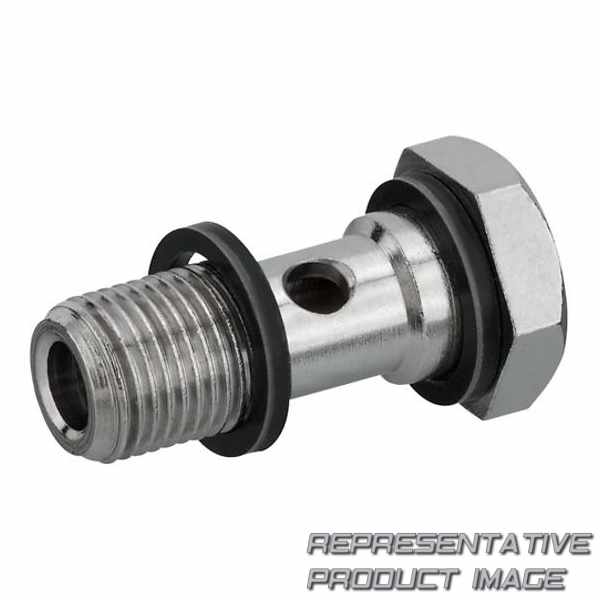

| fitting type | 1x banjo bolt | ||
| Port G | m5 | ||
| working pressure min. | -0.95 bar | ||
| min. ambient temperature | -20 °c | ||
| delivery unit | 10 piece | ||
| Housing Material | brass | ||
| material tooth lock washer | stainless steel |
| compressed air connection type | external thread | ||
| Type | qr2-s-rh1 | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 70 °c | ||
| Weight | 0.003 kg | ||
| seal material | polyvinyl chloride |
