| coil wiring overvoltage protection | without | ||
| electrical power consumption min | 2,2 w | ||
| protection type ip (max. with suitable connector) | ip65 | ||
| cable plug in delivery | not included | ||
| switch time close max. | 40 ms | ||
| valve piloting type | electric | ||
| return type | pneumatic spring + mechanical spring | ||

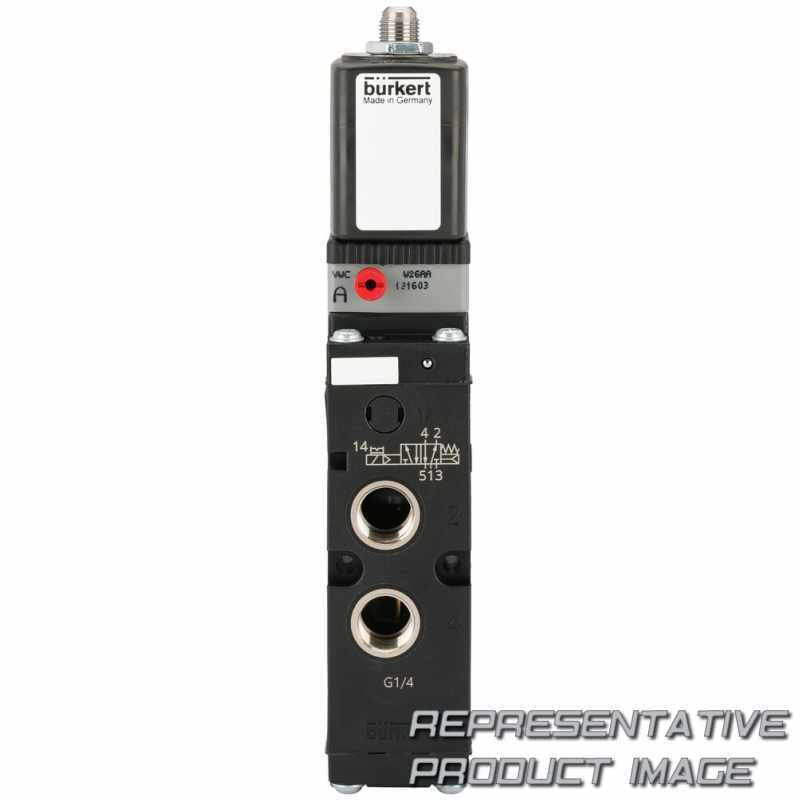

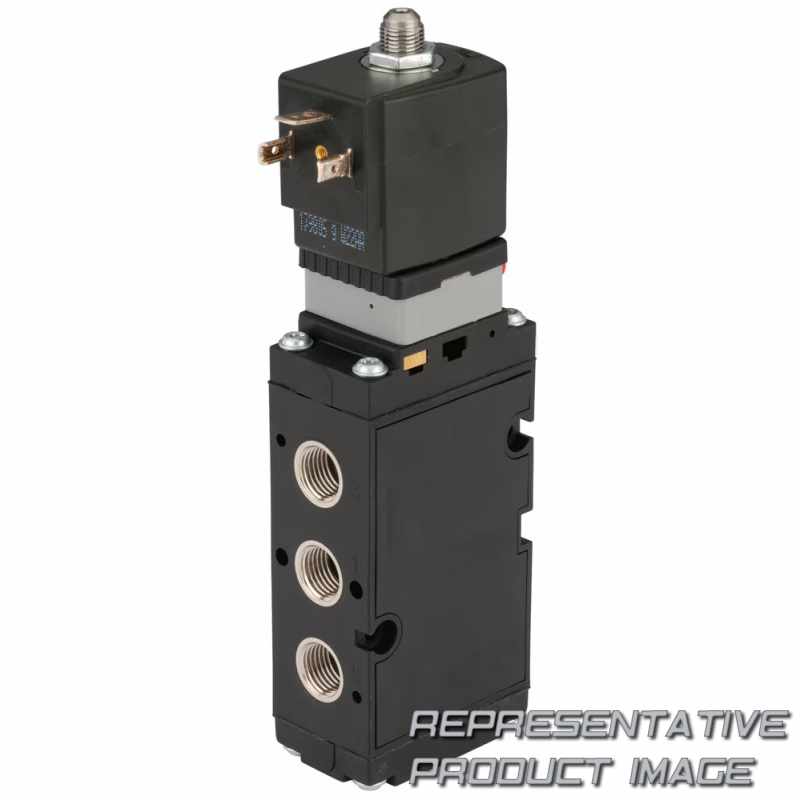

| Type | 6,519 | ||
| pilot control orifice (mm) | 1,2 mm | ||
| pilot control seal material | fkm (fluor rubber) | ||
| temperature environment max | 55 °c | ||
| temperature medium max | 55 °c | ||
| nominal pressure max | 10 bar | ||
| pilot control material environment-contacting | pa (polyamide) | ||
| main valve material environment-contacting | pa (polyamide) | ||
| battery voltage | yes | ||
| voltage max / rated voltage | 24 v | ||
| working connection material | brass | ||
| working connection thread type | g | ||
| working connection diameter (inch) | 1/4 inch | ||
| supply connection thread type | g | ||
| supply connection diameter (inch) | 1/4 inch | ||
| manual actuation screw slot | yes | ||
| manual actuation material | pa (polyamide) | ||
| manual actuation | yes | ||
| fluidic port connection number | 5 |
| electircal power consumption max. | 2,2 w | ||
| coil size | 32 mm | ||
| electrical connection position | supply side | ||
| nominal operation/duty cycle | 100 % | ||
| switch time open max. | 20 ms | ||
| main valve operating principle | globe valve | ||
| product sub-group | pneumatic valves | ||
| main valve orifice 1 (p) (mm) | 8 mm | ||
| qnn value (gas) | 1.300 l/min | ||
| main valve seal material | pur (polyurethane) | ||
| temperature environment min | -25 °c | ||
| temperature medium min | -10 °c | ||
| nominal pressure min | 2 bar | ||
| pilot control material medium-contacting | pa (polyamide) | ||
| main valve wetted material | pa (polyamide) | ||
| dc voltage | yes | ||
| voltage min / rated voltage | 24 v | ||
| working connection position | opposite of supply side | ||
| working connection type | inner thread | ||
| flange | fm02 | ||
| supply connection type | inner thread | ||
| add-on dimension 1 | 33 mm | ||
| manual actuation stop | yes | ||
| manual actuation type | rotary level and key button combined | ||
| valve function number of switching positions | 2 | ||
| Customscode | 84812090 |
