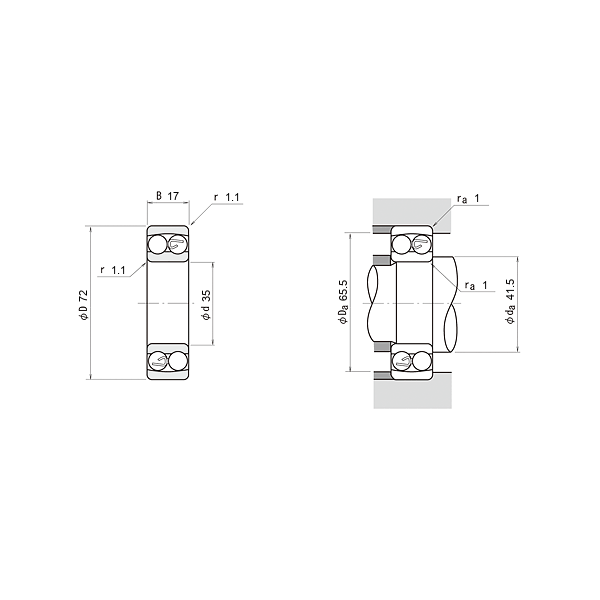

| Bore diameter | d | 35 | mm |
| Width | B | 17 | mm |
| Basic static load rating, radial | C0r | 5,100 | |
| Limiting speed | nG | 11,600 |
| Outside diameter | D | 72 | mm |
| Basic dynamic load rating, radial | Cr | 16,000 | |
| Fatigue load limit, radial | Cur | 325 | N |
| Reference speed | nϑr | 9,800 |
| Minimum diameter shaft shoulder | da min | 42 | mm |
| Maximum fillet radius | ra max | 1 | mm |
| Maximum diameter of housing shoulder | Da max | 65 | mm |
| Minimum chamfer dimension | rmin | 1.10 | mm |
| Shoulder diameter inner ring | d1 | 47.70 | mm |
| Shoulder diameter outer ring | D1 | 59.10 | mm |
| Manufacturer | Part Number |
|---|---|
| SKF | 1207-E TN9-C3 (SKF) |
| Deutsche Kugellagerfabriken | 1207E.TNG.C3 |
