FESTO 11968 solenoid valve

Name: 11968 FESTO
Brand: FESTO
SKU: 710797-en-eur
Price: 388.03 EUR
Availability: InStock

MFH-3-3/4-S

388.03 €

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 2		G3/4
Pilot air port 12		G1/8
Type of mounting		On manifold rail With through-hole Either:
Product weight		1.260 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Storage temperature		-20 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Characteristic coil data		See solenoid coil, to be ordered separately
Switching time on		36 ms
Pilot pressure		1 bar ... 8 bar

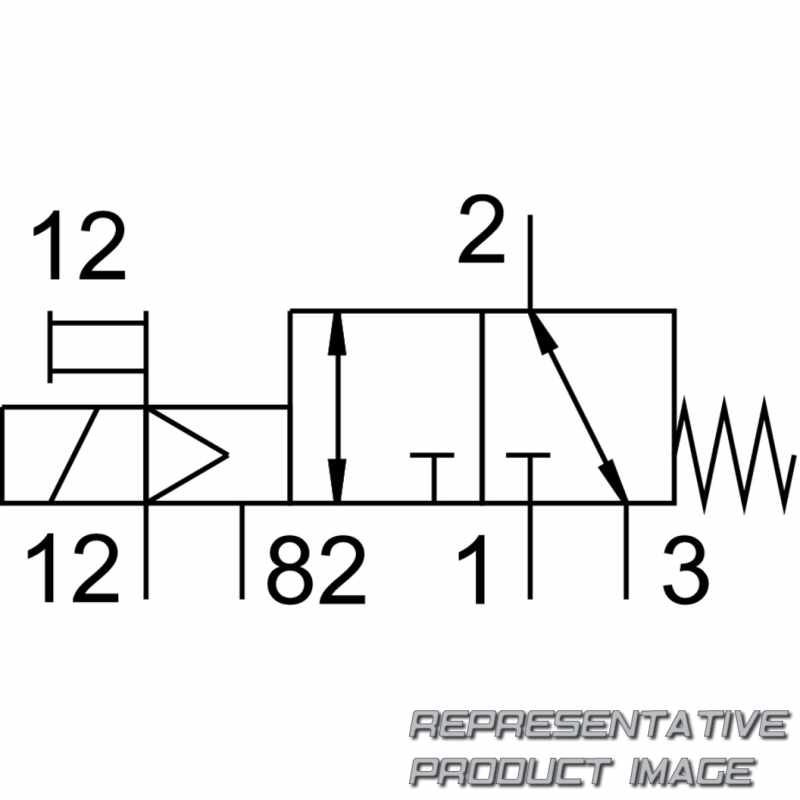

Symbol		00992879
Pilot air supply		External
Manual override		Detenting
Sealing principle		Soft
Nominal size		19 mm
Approval		c UL us - Recognized (OL)
Design		Poppet seat
Operating voltage		Via solenoid coil, must be ordered separately
Standard nominal flow rate		7.500 l/min
Type of actuation		Electric

Material seals		NBR
Pneumatic connection, port 3		G3/4
Pneumatic connection, port 1		G3/4
Pilot exhaust port 82		M5
Electrical connection		Via F coil, to be ordered separately
Ambient temperature		-5 °C ... 40 °C
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. positive test pulse with 0 signal		2.200 µs
Switching time off		32 ms
lap		Underlap
Flow direction		Reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65
Type of reset		Mechanical spring
Operating pressure		-0,95 bar ... 10 bar
pneumatic working port		G3/4
Construction width		68 mm
Valve function		3/2-way, closed, monostable
