| activation | electrically | ||
| compressed air connection | g 1/4 | ||
| working pressure max | 10 bar | ||
| Sealing principle | soft seal | ||
| connection type | pipe connection | ||
| can be assembled into blocks | can be assembled into blocks | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| compressed air connection, exhaust | g 1/4 | ||
| nominal flow qn 2 to 3 | 450 l/min | ||
| Duty cycle | 100 % | ||
| protection class with connection | ip65 | ||
| electrical connection type 2 | plug |
| nominal flow qn | 1100 l/min | ||
| working pressure min. | 2.5 bar | ||
| dc operating voltage | 24 v | ||
| pilot | internal | ||

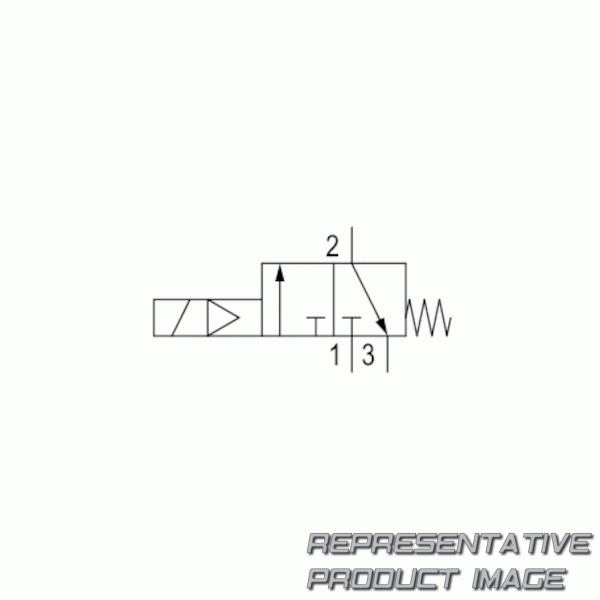

| parts | 3/2-directional valve | ||
| Type | poppet valve | ||
| max. ambient temperature | 60 °c | ||
| max. particle size | 5 µm | ||
| nominal flow qn 1 to 2 | 1100 l/min | ||
| power consumption dc | 4.8 w | ||
| connector standard | iso 6952 | ||
| Reverse polarity protection | protected against polarity reversal |
