| Housing Material | polyamide | ||
| max. ambient temperature | 50 °c | ||
| Duty cycle | 100 % | ||
| compatibility index | 14 | ||
| protection class with connection | ip65 | ||
| electrical connection type | plug | ||
| operational↩voltage | 24 v dc | ||
| working pressure min. | 0 bar | ||
| compressed air connection | g 1/8 | ||
| Manual override | with detent | ||

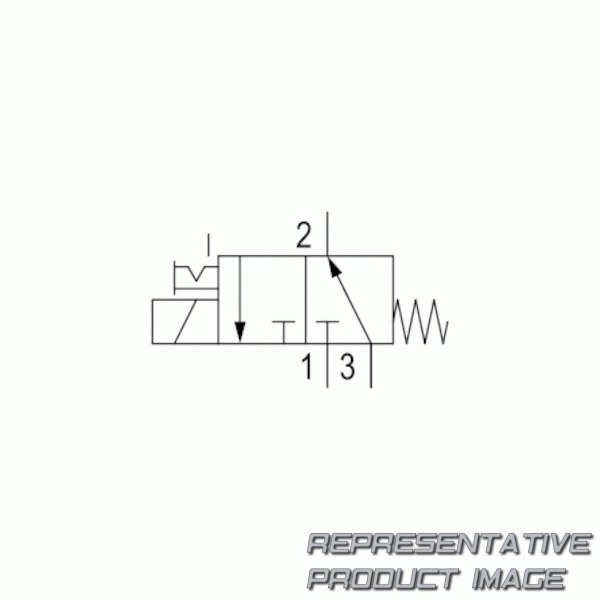

| switching principle | 3/2, with spring return | ||
| activation | electrically |
| Weight | 0.11 kg | ||
| min. ambient temperature | -10 °c | ||
| power consumption dc | 4.8 w | ||
| Sealing principle | soft seal | ||
| electrical connection size | iso 6952, form b | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 7 bar | ||
| compressed air connection output | g 1/8 | ||
| nominal flow qn | 82 l/min | ||
| Valve function | no | ||
| frame size | do22 |
