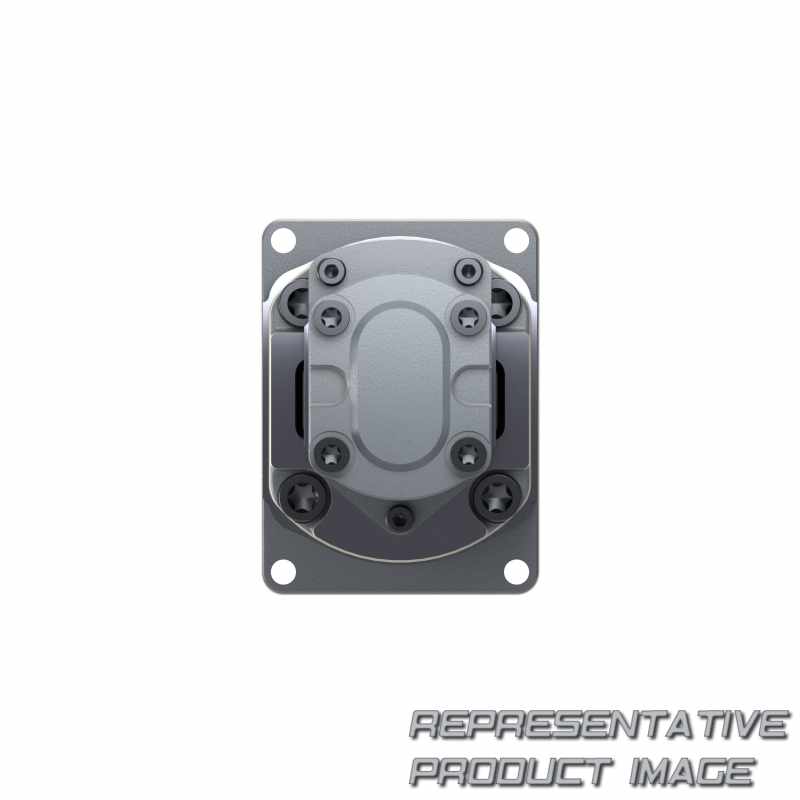

| Rear cover | Standard | ||
| Port connection pump unit 2 | Square flange DIN 3901/3902 | ||
| Version | corrosion-resistant, pinned | ||
| Model pump unit 2 | Model F (4 ... 28 cm³/rev) | ||
| function | Pump | ||
| Noise level | Standard noise level | ||

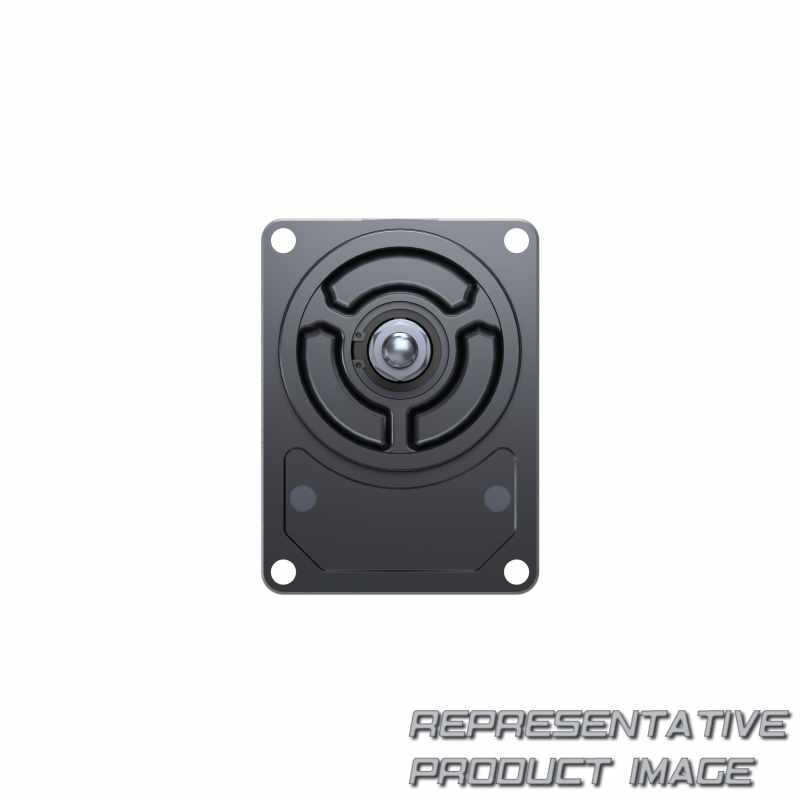

| Front cover | Rectangular flange Ø 105 mm | ||
| Drive shaft | Conical 1:5 | ||
| Max. intermittent pressure pump unit 2 | 230 bar | ||
| Size pump unit 2 | 16 cm³/rev | ||
| Max. flow PU2 | 44.8 l/min |
| Sealing Material | NBR | ||
| port connection | Rectangular flange for fitting ISO8434-1 | ||
| Series | Bearing diameter Ø 26mm | ||
| model | Model G (22.5 ... 56 cm³/rev) | ||

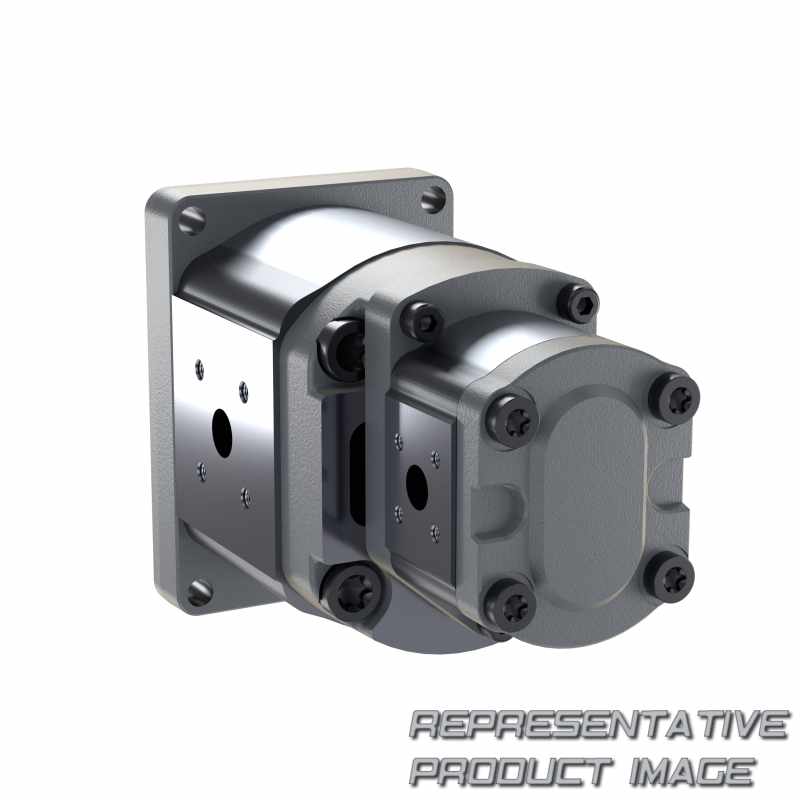

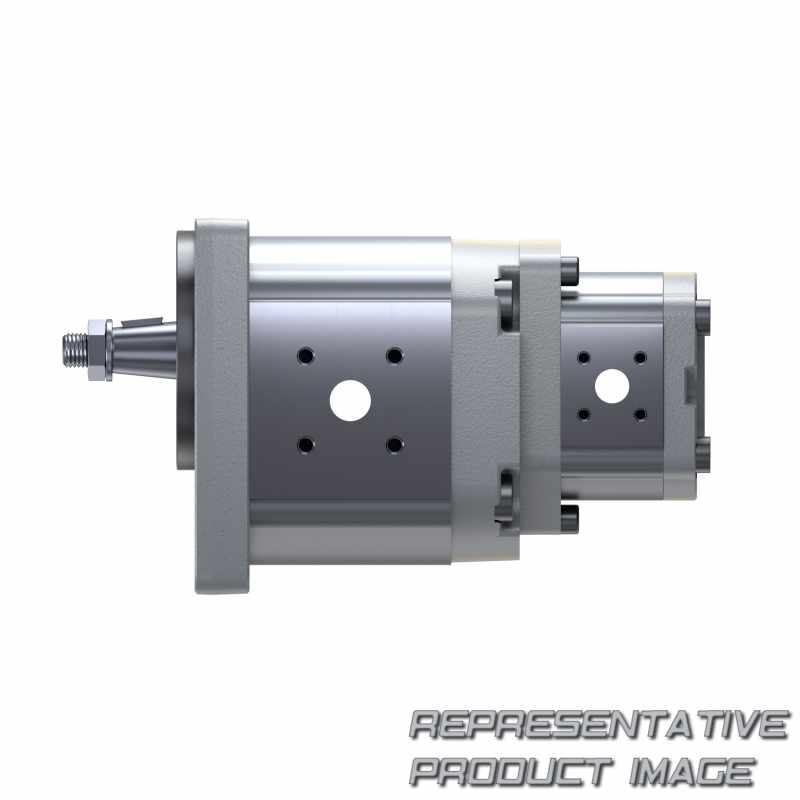

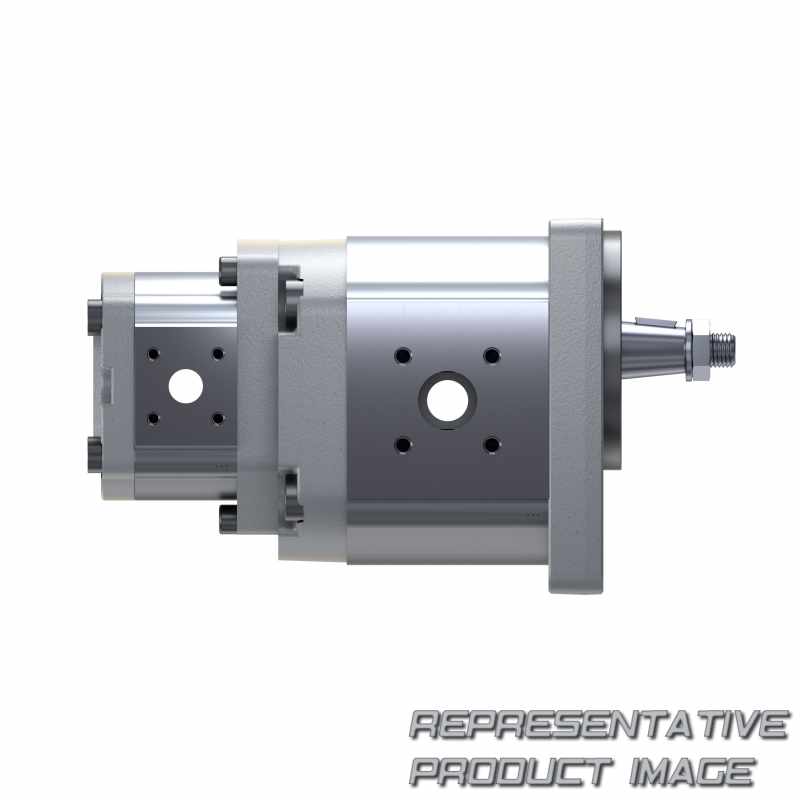

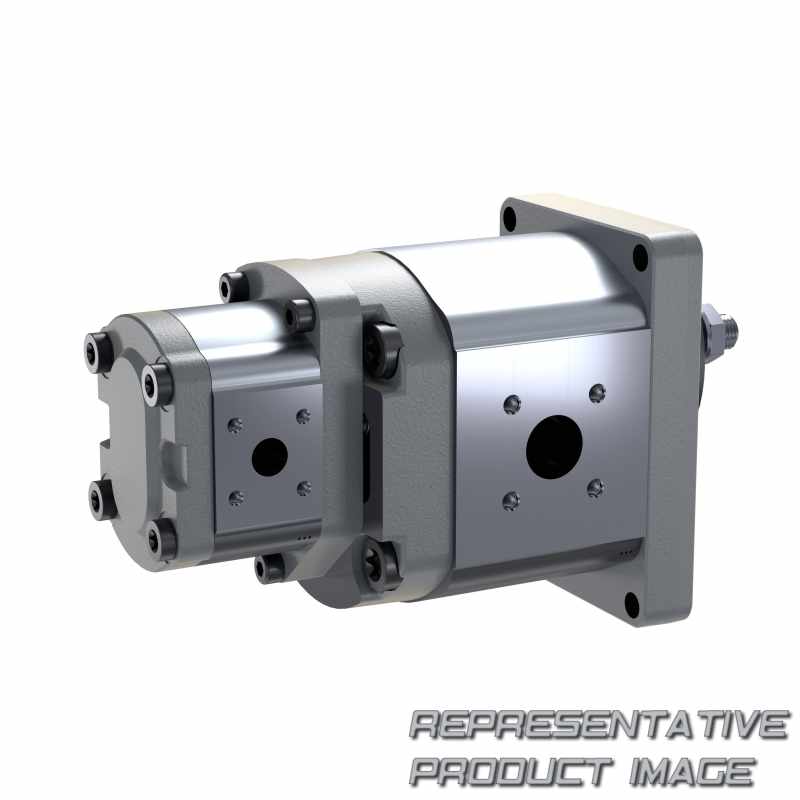

| product | External gear unit | ||
| Housing Material | Aluminum | ||
| Direction of rotation | anti clockwise rotation | ||
| Maximum rotational speed | 2800 rpm | ||
| Max. intermittent pressure pump unit 1 | 280 bar | ||
| Nominal size | 32 cm³/rev |
