| number of poles | three-pole | ||
| operation | non-reversing | ||
| frequency rating | 50-60 hz | ||
| hp rating - max | 50, 75, 150, 200 hp (3ph @200,240,480,600 v) | ||
| Series | xt iec | ||
| contact configuration | 2 no, 2 nc | ||
| certifications | ul listed csa certified iec 60947 en 60947 |
||
| Product weight | 2.26 kg | ||
| product height | 19.05 cm | ||
| ean | 4015081363254 |
| amperage rating | 225 a | ||
| terminals | screw terminals | ||
| continuous ampere rating | 225 a | ||

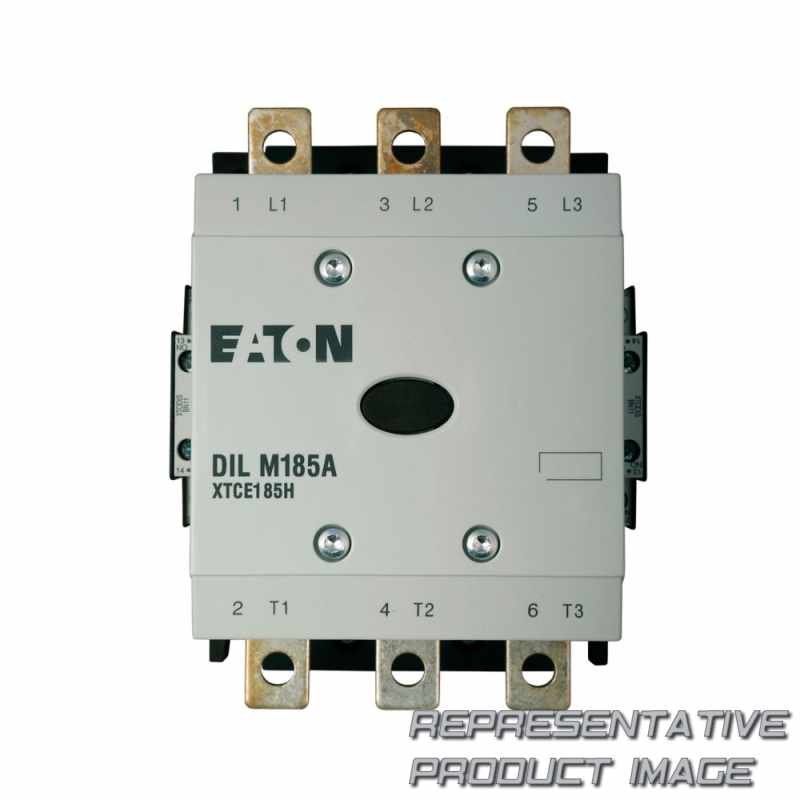

| Type | full voltage non-reversing contactor | ||
| coil voltage | 190-240 vac, 50-60 hz | ||
| catalog notes | screw terminals (6-65a); 5 mm (80-150a); no lugs (185-2000a) | ||
| compliances | ce marked rohs compliant |
||
| product width | 13.97 cm | ||
| product length/depth | 15.24 cm |
