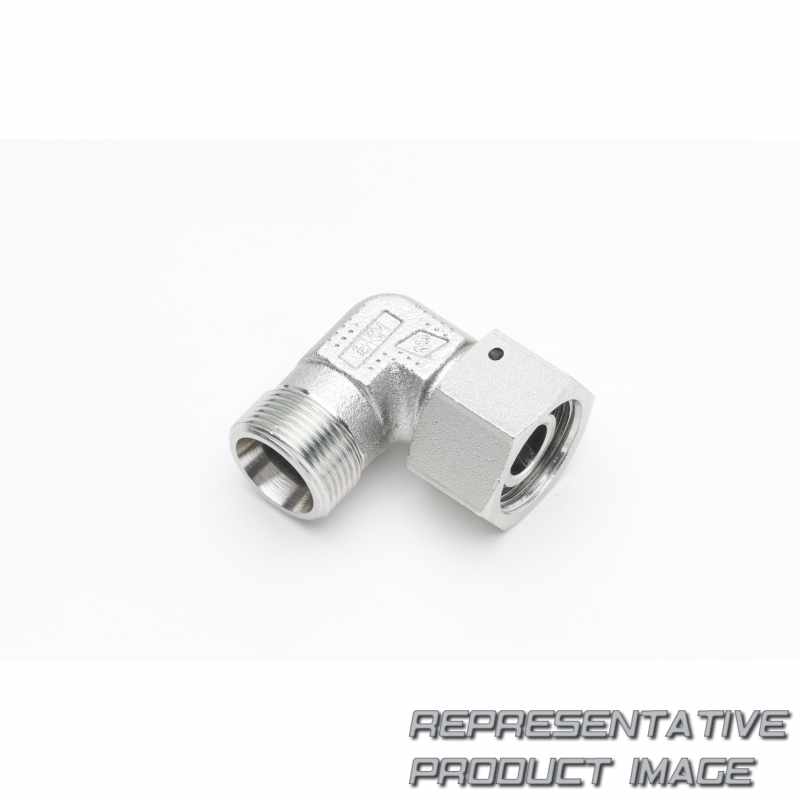

| metric tube fittings | 90 deg swivel 12l body | ||
| Material | carbon steel | ||
| pressure (bar) | 400 | ||
| Series | l - light series | ||
| tube od | 12 | ||
| family | metric tube fittings | ||
| L1 | 29.50 | mm | |
| l5 | 24 | ||
| S1 | 17 | ||
| S3 | 22 | ||
| tube o.d. | 12 |
| end type | bsp (taper) | ||
| pressure (psi) | 5,801 | ||
| primary system | walpro | ||
| shape | 45 degree | ||
| description | adjustable male stud elbow (body only) | ||
| i | 17 | ||
| L2 | 32 | ||
| o-ring 1 | 10.0x1.5 | ||
| S2 | 22 | ||
| section in catalog | f | ||
| Type | ewsd 12 l |
