| metric tube fittings | egesd 20 sr-wd a4gs | ||
| Material | carbon steel | ||
| pressure (bar) | 420 | ||
| Series | s - heavy series | ||
| tube od | 20 | ||
| family | metric tube fittings | ||
| o-ring | 17.3x2.4 | ||
| S1 | 32 | ||
| section in catalog | k | ||
| Thread Type | bsp thread (parallel) | ||
| Type | egesd 20 sr-wd | ||
| d | 31.90 |
| end type | npt | ||
| pressure (psi) | 6,091 | ||
| primary system | walpro | ||
| shape | 90 degree | ||

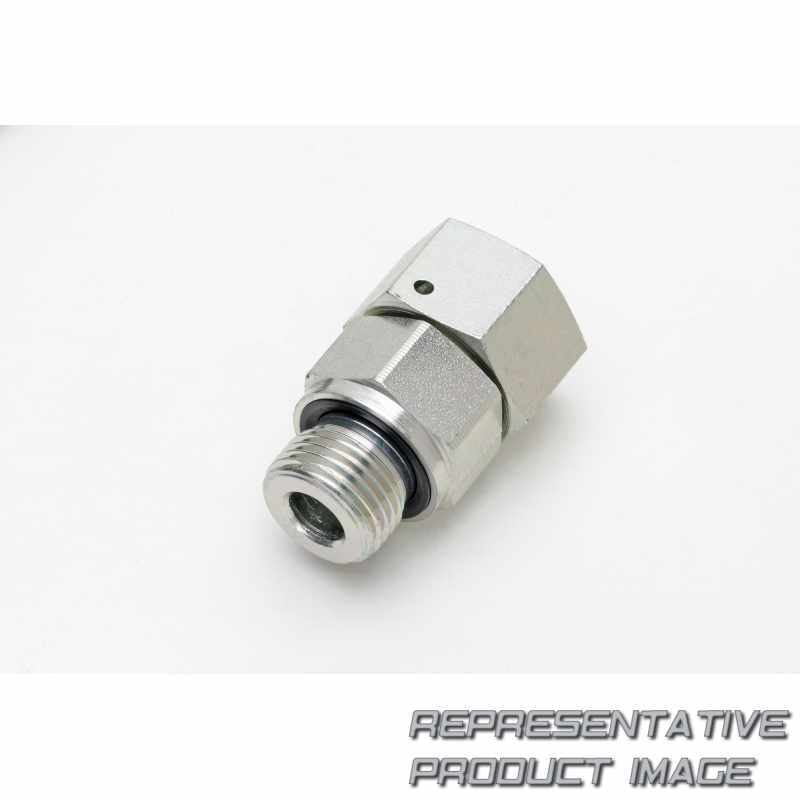

| description | stud standpipe adaptor (body only) | ||
| L1 | 43 | mm | |
| o-ring 1 | 17.3x2.4 | ||
| S2 | 36 | ||
| Thread G | g3/4-14 | ||
| tube o.d. | 20 | ||
| weight kg/100 pcs. | 28.60 | ||
| i | 16 |
