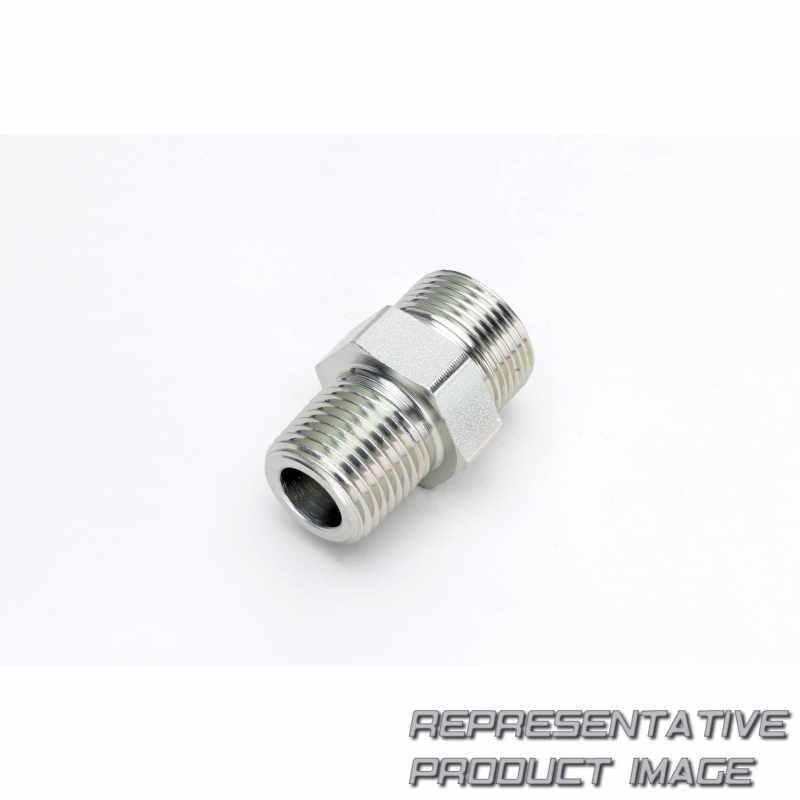

| metric tube fittings | ges 10 s/3/8npt a4gs | ||
| Material | carbon steel | ||
| pressure (bar) | 630 | ||
| Series | s - heavy series | ||
| tube od | 10 | ||
| family | metric tube fittings | ||
| l5 | 35 | ||
| S2 | 22 | ||
| thread npt | 43,167 | ||
| tube o.d. | 10 | ||
| weight kg/100 pcs. | 4.90 |
| end type | npt | ||
| pressure (psi) | 9,137 | ||
| primary system | walpro | ||
| shape | 90 degree | ||
| description | male stud coupling (body only) | ||
| L2 | 44 | ||
| S1 | 19 | ||
| section in catalog | e | ||
| Thread Type | npt (ansi/asme b1.20.1-1983) | ||
| Type | ges 10 s/ 3/8 npt | ||
| i | 15 |
