FESTO VZBD
30 Products
Discover all the available configurations for the FESTO VZBD product series Ball valve. Find the right product by filtering with Nominal diameter DN, Process valve connection and Flanged connection.
VZBD Type Codes
| Series | Catalog Number Format | Description |
|---|---|---|
| VZBD | VZBD- - -16-T-2- --V14-V14 | Ball valve |
Typecode for Catalog Number VZBD,
VZBD- - -16-T-2- --V14-V14
| 001 | Series |
|---|---|
| VZBD | Ball valve |
| 002 | Nominal diameter DN |
| 1/2 | 1/2” |
| 3/4 | 3/4” |
| 1 | 1” |
| 11/4 | 1 1/4” |
| 11/2 | 1 1/2” |
| 2 | 2” |
| 21/2 | 2 1/2” |
| 3 | 3” |
| 4 | 4” |
| 003 | Process valve connection |

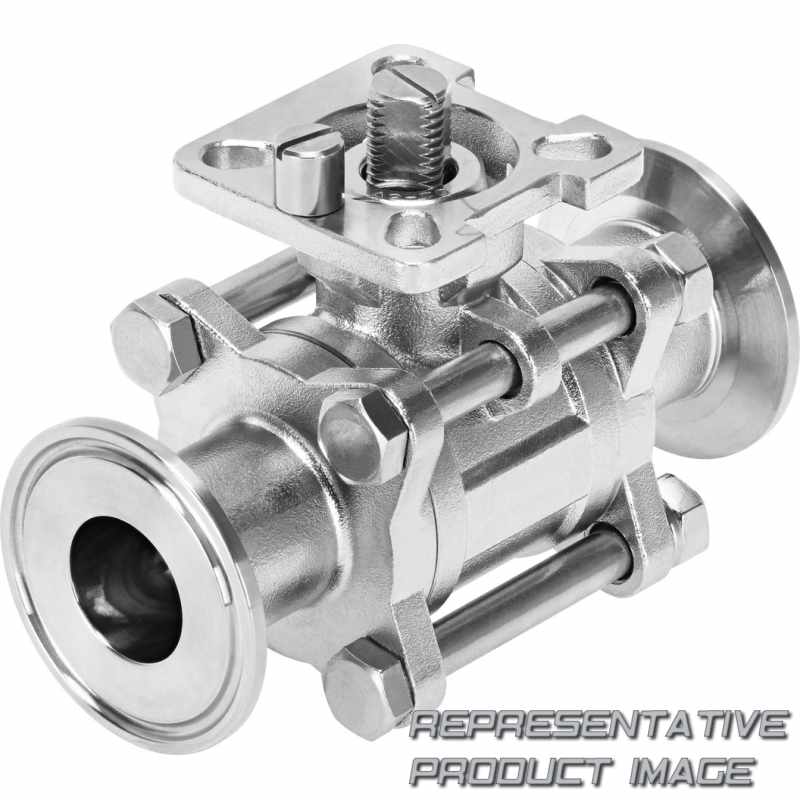

| S1 | Clamp to ASME-BPE |
| S5 | Clamp ferrule to DIN 32676 |

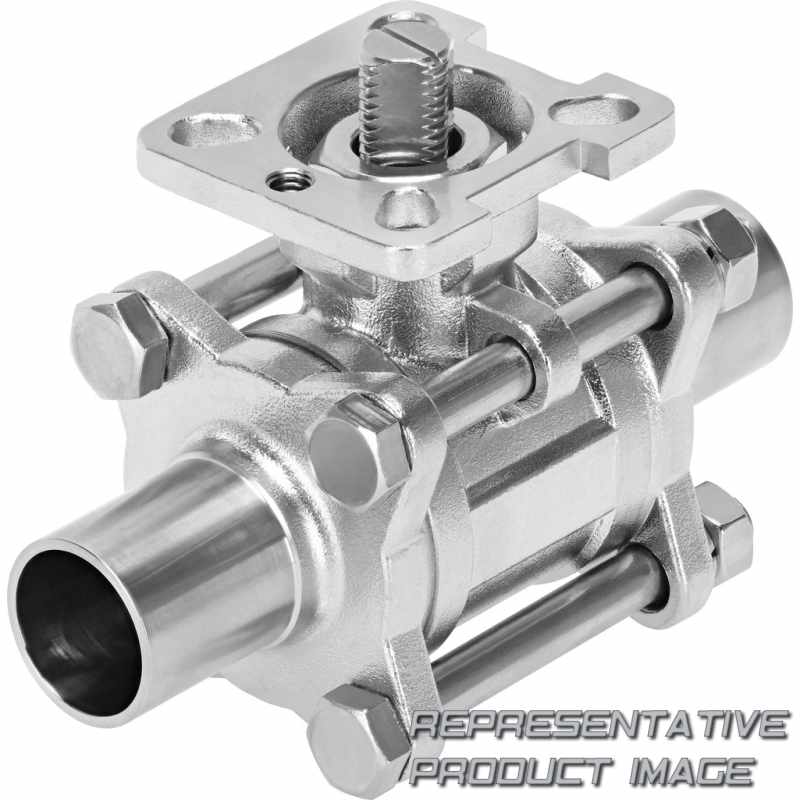

| W1 | Extended welded ends to ASME-BPE |
| W3 | Extended welded ends to EN ISO 1127 |
| 004 | Nominal pressure [bar] |
| 16 | 16 |
| 005 | Design type |
|---|---|
| T | Three-part |
| 006 | Valve function |
| 2 | 2/2-way |
| 007 | Flanged connection |
| F0304 | Hole pattern 03 and 04 |
| F0405 | Hole pattern 04 and 05 |
| F0507 | Hole pattern 05 and 07 |
| F0710 | Hole pattern 07 and 10 |
| F1012 | Hole pattern 10 and 12 |
| 008 | Actuation type |
| Via drive | |
| 009 | Housing material |
| V14 | Stainless steel ASTM A351-CF3M |
| 010 | Shut-off element material |
| V14 | Stainless steel ASTM A351-CF3M |
