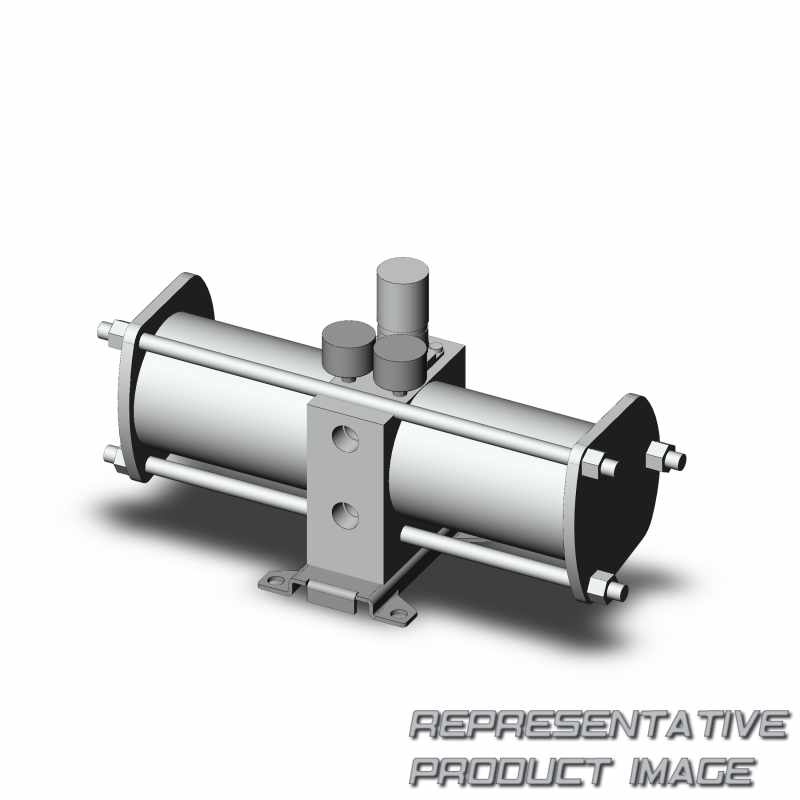

| model | vba40a-04 | ||
| pressure increase ratio | twice | ||
| max. flow rate note 2) (l/min (anr)) | 1,900 | ||
| supply pressure range (mpa) | 0.1 to 1.0 | ||
| port size (rc) (in/out/exh: 3 locations) | 1/2 | ||
| ambient and fluid temperature (c) | 2 to 50 (no freezing) | ||
| Lubrication | grease (non-lube) | ||
| Weight | 20.60742 lb |
| fluid | compressed air | ||
| pressure adjustment mechanism | handle-operated with relief mechanism note 1) | ||
| set pressure range (mpa) | 0.2 to 1.0 | ||
| proof pressure (mpa) | 1.50 | ||
| pressure gauge port size (rc) (in/out: 2 locations) | 1/8 | ||
| installation | horizontal | ||
| weight (kg) | 8.60 |
