INA VA160302-N

0013222060000

5,721.08 € ~~6,917.46 €~~ -17%

1 pcs. with 1 to 3 days delivery to United States

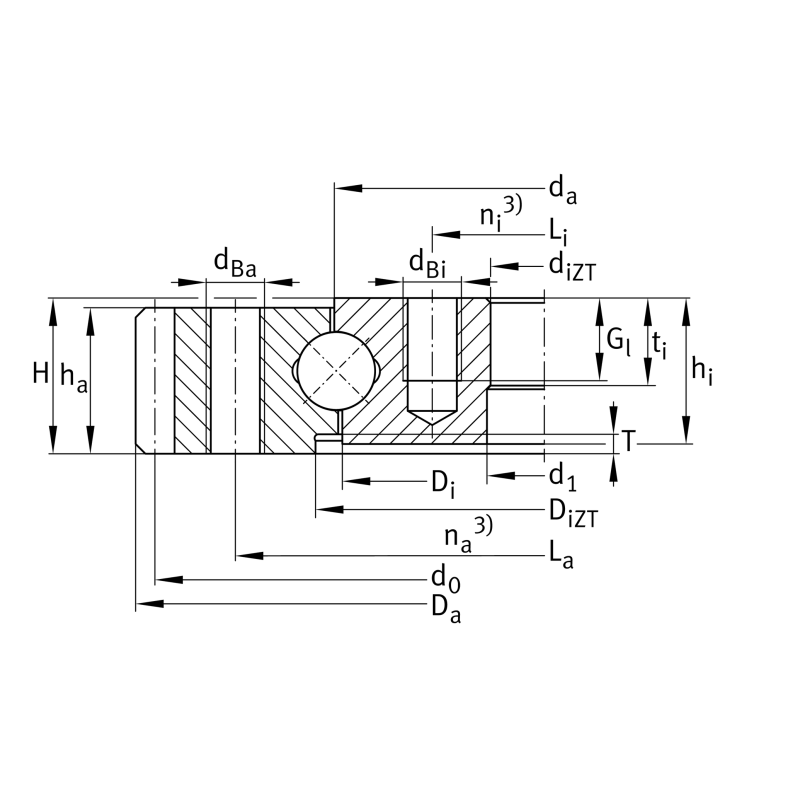

Specifications

Width	32mm
Inner Diameter	240mm

Outer Diameter	384mm
Weight	13.70Kg

Max. tooth force against tooth fracture (at a shock factor of 1,35)	F_{z max}	16,100
Width gearing	b	30	mm
Modul of gearing	m	4	mm
Max. radial load fixing screws (friction locking)	F_{r zul}	82,600
Tread fixing bore	d_Ba	M12
Number of fixing holes in outer ring	n_a	20
Number of fixing holes in inner ring	n_i	20

Max. tooth force root fatigue strenght (at a shock factor of 1,2)	F_{z norm}	11,000
Number of teeth	z	94
Pitch circle diameter gearing	d₀	376	mm
Thread depth fixing hole	G_l	18	mm
Pitchcircle diameter fixing holes outer ring	L_a	343	mm
Pitchcircle diameter fixing holes inner ring	L_i	262	mm
Outside diameter inner ring	d_a	302.30	mm

Normal axial clearance max.		0.26
Normal radial clearance max.		0.16
height of individual ring	h_i	30	mm
Length centering inner ring	t	18	mm
Diameter centring outer ring lower tolerance		-0.08	mm
Outside diameter	D	384	mm
Diameter centring inner ring lower tolerance		-0.07	mm
Bore diameter lower tolerance		-0.50	mm
Bore diameter	d	240	mm

Normal axial clearance min.		0.07
Normal radial clearance min.		0.04
Width Outer ring	C	30	mm
Length centering outer ring	T	3	mm
Diameter centring outer ring	D_{i ZT}	310	mm
Height	T	32	mm
Diameter centring inner ring	d_iZT	238	mm
Bore diameter upper tolerance		0.50	mm
