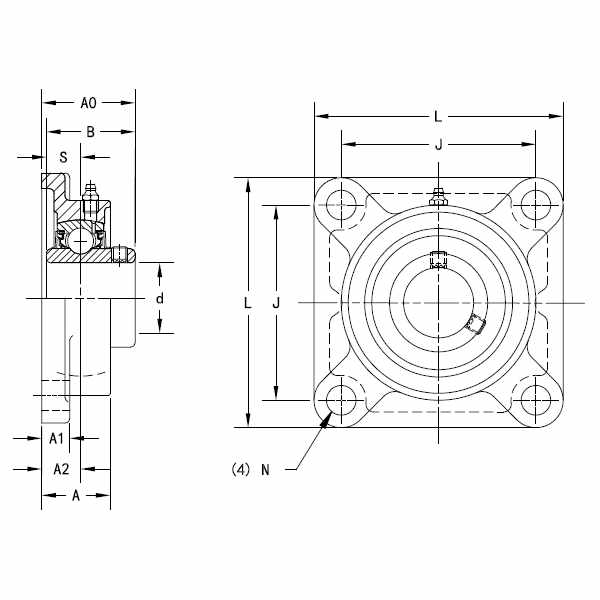

| Grease Nipple Size | A-1/4-28UNF | ||
| Dimension A0 | 54.60 | mm | |
| Inner Ring Width B | 51.60 | mm | |
| Flange Thickness A1 | 16 | mm | |
| Bolt Hole Spacing J | 111 | mm | |
| Total Length L | 143 | mm |
| Bolt Size | M14 | ||
| Center of Bearing from Bearing End S | 19 | mm | |
| Center of Bearing from Housing End A2 | 22 | mm | |
| Bolt Hole Size N | 16 | mm | |
| Housing Width A | 40 | mm |
| Weight | 2.50 | Kg | |
| Locking Style | Set Screw Locking | ||
| Shaft Size d | 50 | mm |
| Housing Construction | Four-Bolt Square Flange | ||
| UPC Code | 87,796,073,760 | ||
| Bearing Number | UC210 |
