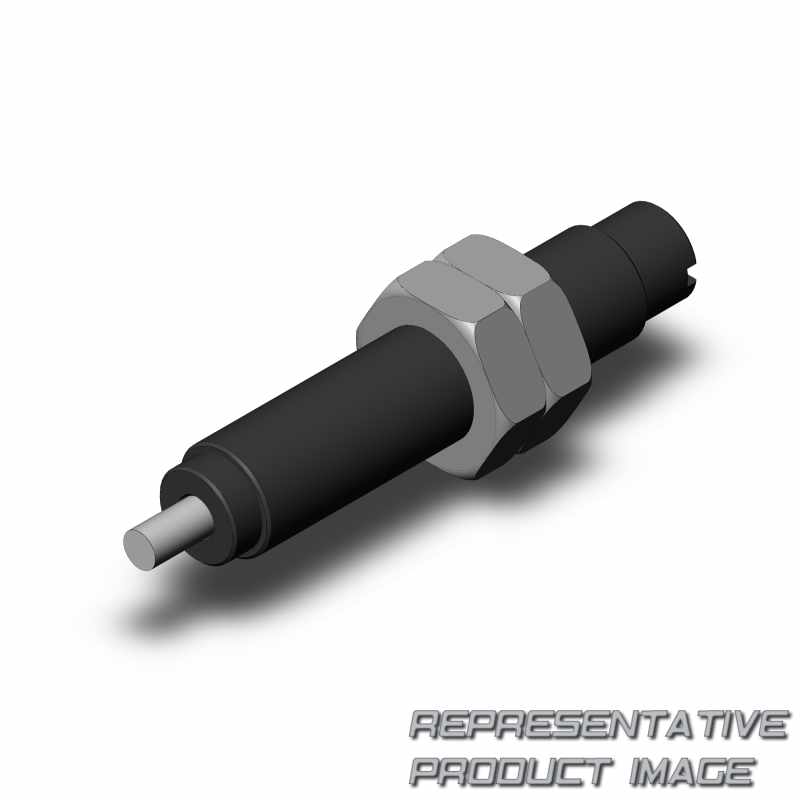

| shock absorber model | rb0805 | ||
| max. energy absorption (j) | 0.98 | ||
| max. collision speed (mm/s) | 50 to 500 | ||
| max. allowable thrust (n) | 245 | ||
| spring force (n) - extended | 1.96 | ||
| mass (g) | 15 |
| applicable slide table | mxq8 | ||
| stroke absorption (mm) | 5 | ||
| max. operating frequency (cycle/min) | 80 | ||
| ambient temperature range (c) | ?10 to 60 | ||
| spring force (n) - retracted | 3.83 |
