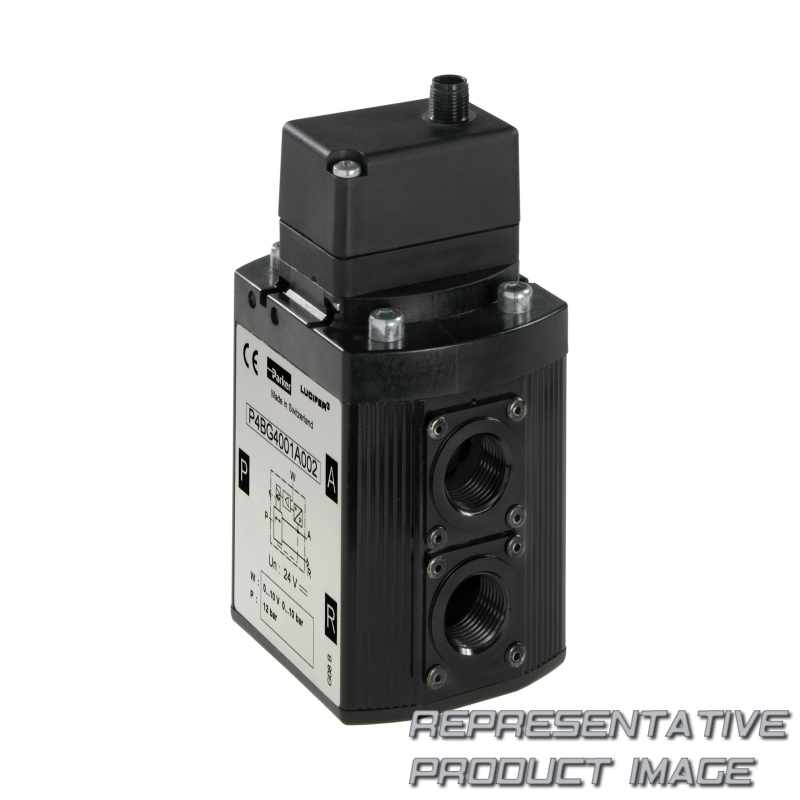

P4BG4001A002 Parker Hannifin

PARKER P4BG4001A002

Name: P4BG4001A002 PARKER
Brand: PARKER
SKU: 568744-en-eur
Price: 1170.5 EUR
Availability: SoldOut

1,170.50 € ~~1,270.50 €~~ -7%

Limited stock only available on quotation

Specifications

The EPP4 family is an electro pneumatic pressure regulator. The BASIC range precision is based on a reliable design: a pulsed width modulated solenoid valve controls the output pressure proportionally to an analog input signal.

Mounting Position	indifferent (recommended position: upright; electronic part on top)
max. flow	150 m3/hour

Weight	850g

Technical data

Electrical connection		m12 - 4 pin; male connector communication
Port size		1/2" bsp
maximum regulating pressure		10 bar
minimum ambient temperature		0 °c
Hysteresis		± 50mbar (factory set up)
power consumption		max. 2.8 w with 24 v dc and constant changes of the control signal < 1.5 w without change of control signal
maximum pressure differential		12 bar
maximum flow rate		150 m3/hour
specifications met		en 61000-6-1: 2001 \| en 61000-6-2: 2001 \| en 61000-6-3: 2001 \| en61000-6-4:2001
materials of construction		silicon free
Mounting position		indifferent (recommended position: upright; electronic part on top)

for fluid type		lubricated or non lubricated air, neutral gases
control signal		0 - 10 v
Options		-
maximum ambient temperature		+50 °c
power supply voltage		24v dc ± 15% (max. ripple 1v)
minimum pressure differential		0 bar
minimum regulating pressure		0,05 bar
protection mode		ip65
atex specifications met		-
Vibration resistance		30g (in all directions)
