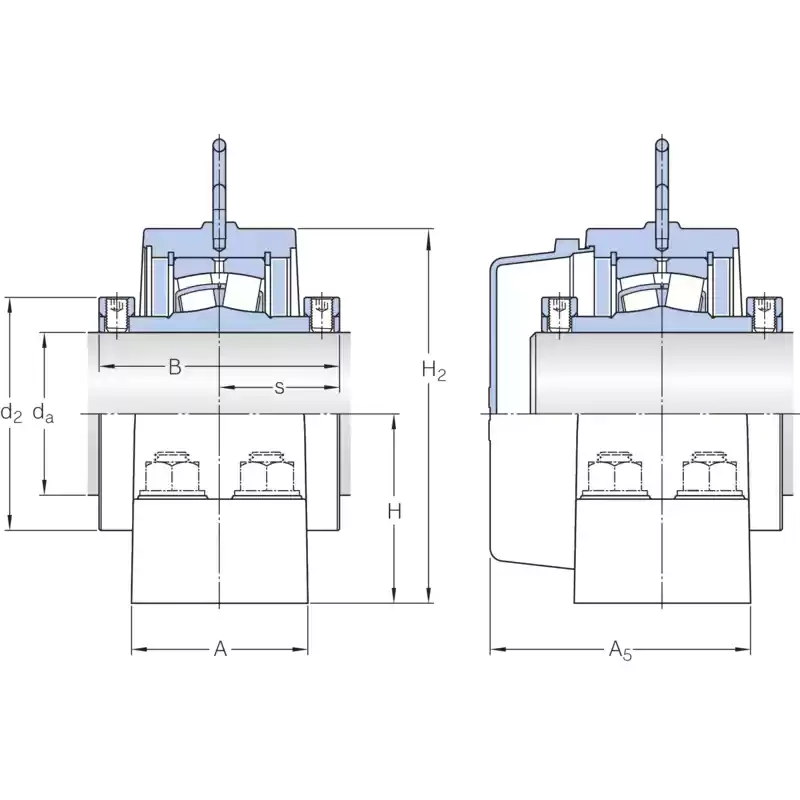

| Centre line unit to side face of inner ring | s | 84.14 | mm |
| Width foot slot width | N | 25.40 | mm |
| Axial distance bolt to bolt | J1 | 69.85 | mm |
| Distance between attachment bolts, min. | J | max.412.75 | |
| Housing height | H2 | 280.988 | |
| Height base to center | H | 139.70 | mm |
| Width including end cover | A5 | 176.213 | |
| Collar outer diameter | d2 | 174.625 |
| Length of attachment bolt hole | N1 | 39.69 | mm |
| Housing length | L | 469.90 | mm |
| Distance of attachment bolts | J | 398.463 | |
| Distance between attachment bolts, max. | J | min.384.175 | |
| Housing foot height | H1 | 79.38 | mm |
| Inner ring width | B | 168.275 | |
| Housing foot width | A | 130.175 | |
| Shaft diameter | d | 125.40 | mm |
