| mass (g) | 390 | ||
| effective grippingforce (n) at 0.5 mpa (note 1) - internal grip | 97 | ||
| action | double acting | ||
| max. operating frequency (c.p.m.) | 60 | ||
| ambient and fluid temperature (c) | ?10 to 60 | ||
| fluid | air | ||

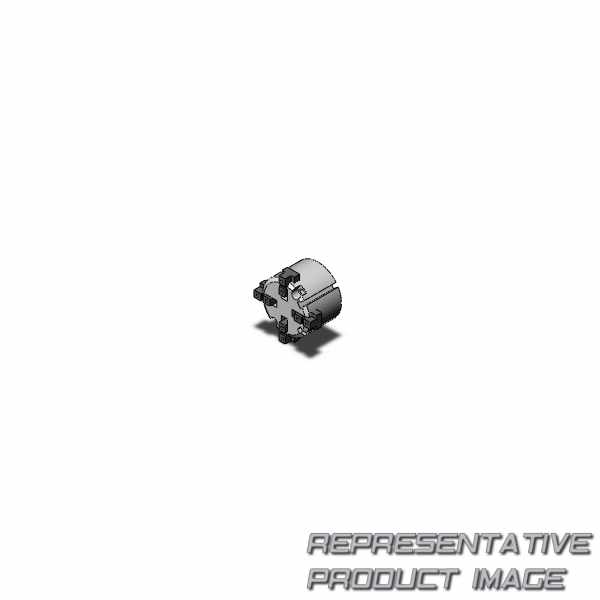

| model | mhs4-40d |
| opening/closing stroke (mm) | 8 | ||
| effective grippingforce (n) at 0.5 mpa (note 1) - external grip | 88 | ||
| Lubrication | not required | ||
| repeatability (mm) | -- | ||
| operating pressure (mpa) | 0.1 to 0.6 | ||
| cylinder bore size (mm) | 40 |
