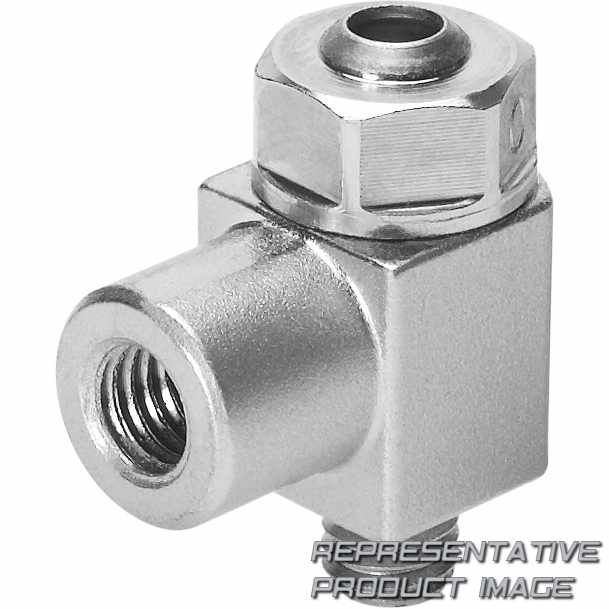

FESTO 175039 flow control valve

Name: 175039 FESTO
Brand: FESTO
SKU: 685722-en-eur
Price: 26.77 EUR
Availability: InStock

GRLO-M3

26.77 €

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (GRLO)	Flow control valve, L outlet
Pneumatic connection (M3)	Male thread M3
Pneumatic connection 1	Connection size as for port 1 or 2

Flow rate characteristic	None
Generation	None

Material swivel fitting		Die-cast zinc
Material seals		NBR
Material screw-in stud		Brass
Max. tightening torque		0,3 Nm
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)		33 l/min
Mounting position		optional
Operating pressure		0 bar ... 10 bar
Type of mounting		Screw-in
Pneumatic connection, port 2		M3
Valve function		Flow control function

Material adjusting screw		Brass
Note on materials		RoHS-compliant
Product weight		2 g
Media temperature		-10 °C ... 60 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]

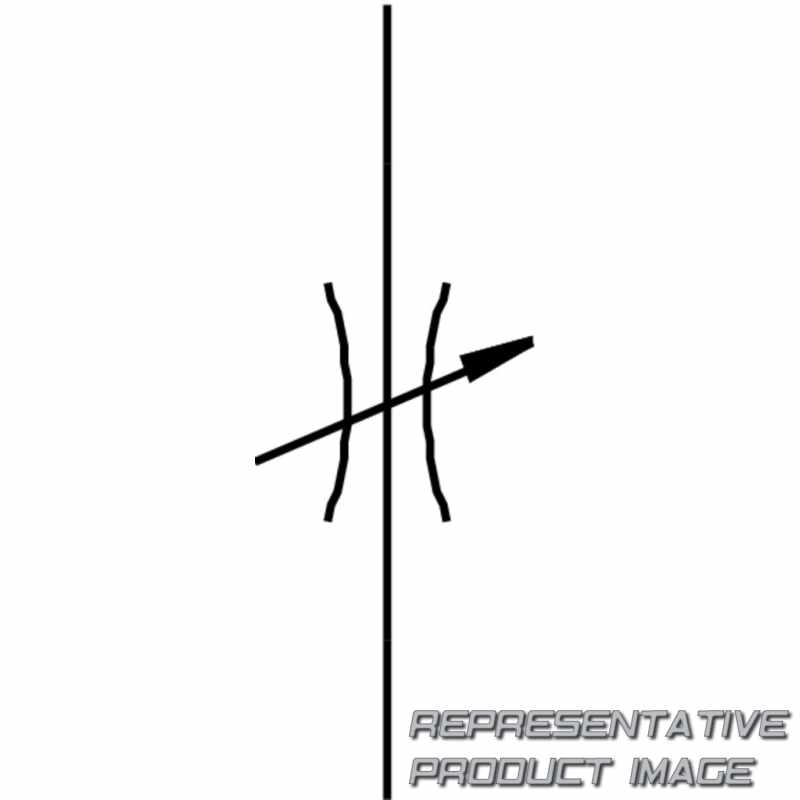

Symbol		00991454
Ambient temperature		-10 °C ... 60 °C
Standard nominal flow rate in flow control direction		18 l/min
Adjustment component		Slotted head screw
Pneumatic connection, port 1		M3
