| Size | 100 | ||
| Piston rod thread | M20x1.5 | ||
| Torsional backlash at piston rod +/- | 0,5 deg | ||
| Mounting position | optional | ||
| Position detection | Via proximity switch | ||
| Spindle type | Ball screw | ||
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | ||
| Duty cycle | 100% | ||
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Cleanroom class | Class 7 according to ISO 14644-1 | ||
| Suitable for use with food | See supplementary material information | ||
| Degree of protection | IP40 | ||
| Max. radial force at drive shaft | 1.100 N | ||
| Reference value effective load, horizontal | 1.700 kg | ||
| Moving mass for 0 mm stroke | 8.786 g | ||
| Basic weight for 0 mm stroke | 11.123 g | ||
| Type of mounting | Via female thread Or accessories | ||
| Note on materials | RoHS-compliant | ||
| Material piston rod | High-alloy stainless steel | ||
| Material spindle nut | Rolled steel | ||
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Stroke | 30 mm ... 1.500 mm | ||
| Spindle diameter | 40 mm | ||
| Based on standard | ISO 15552 | ||
| Type of motor | Servo motor | ||
| Design | Electric cylinder with ball screw | ||

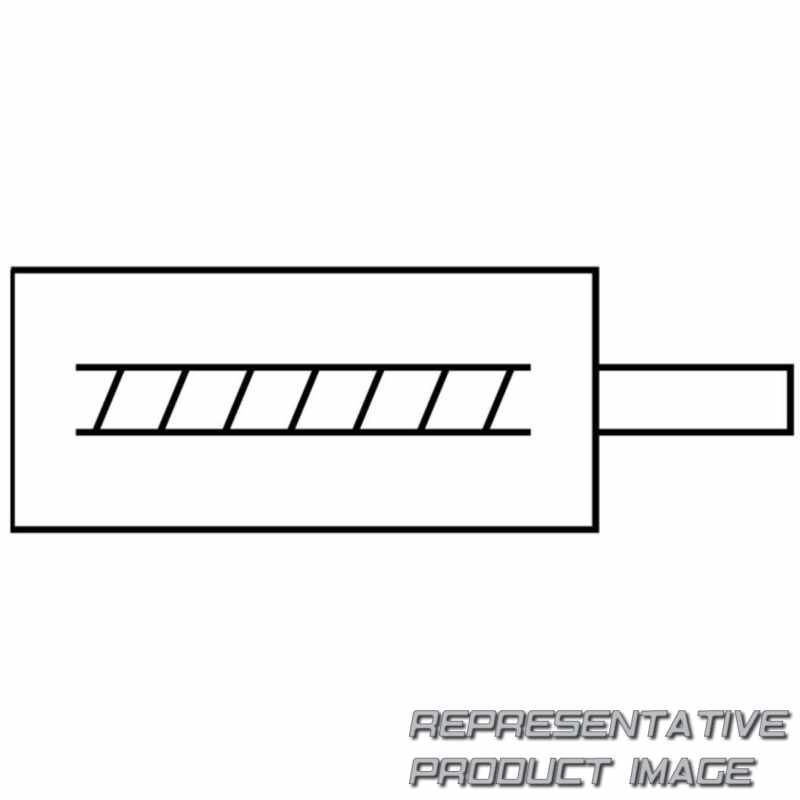

| Symbol | 991,941 | ||
| Protection against torque/guide | With plain-bearing guide | ||
| Corrosion resistance class CRC | 0 - No corrosion stress 2 - Moderate corrosion stress | ||
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | ||
| Storage temperature | -20 °C ... 60 °C | ||
| Relative air humidity | 0 - 95% | ||
| Ambient temperature | 0 °C ... 60 °C | ||
| Max. feed force Fx | 17.000 N | ||
| Reference value effective load, vertical | 1.700 kg | ||
| Additional moving mass per 10 mm stroke | 132 g | ||
| Additional weight per 10 mm stroke | 193 g | ||
| Interface code, actuator | D100 | ||
| Material cover | Cast aluminium, coated | ||
| Material screws | Galvanised steel | ||
| Material spindle | Rolled steel |
