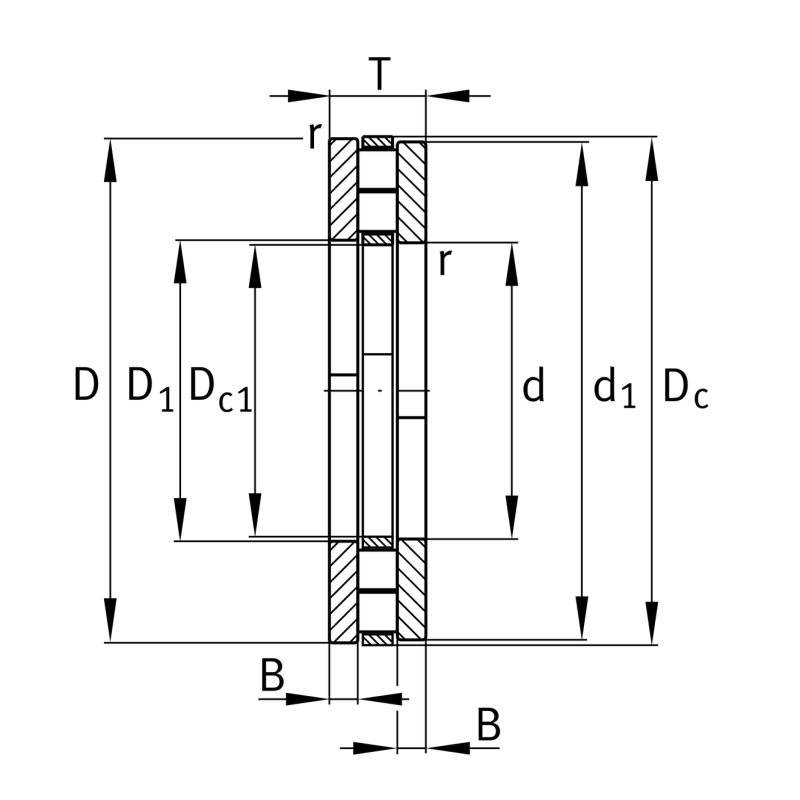

| Bore diameter | d | 75 | mm |
| Height | T | 51 | mm |
| Basic static load rating, axial | C0a | 1,580,000 | |
| Limiting speed | nG | 2,450 |
| Outside diameter | D | 160 | mm |
| Basic dynamic load rating, axial | Ca | 500,000 | |
| Fatigue load limit, axial | Cua | 163,000 | |
| Reference speed | nϑr | 1,000 |
| Rip diameter shaft washer | d1 | 160 | mm |
| Minimum chamfer dimension | rmin | 2 | mm |
