| connection 1 thread size (metric) | g3/8 | ||
| body material | nickel plated brass | ||
| o-ring material | nbr | ||
| minimum operating temperature | -15 °c | ||
| quantity per box | 1 | ||
| Application | robotics, textile, semi-conductors, packaging, pneumatics | ||
| specifications met | di: 2002/95/ec (rohs), rg: 1907/2006 (reach), di: 97/23/ec (ped) |
| connection 1 thread style | bspp | ||

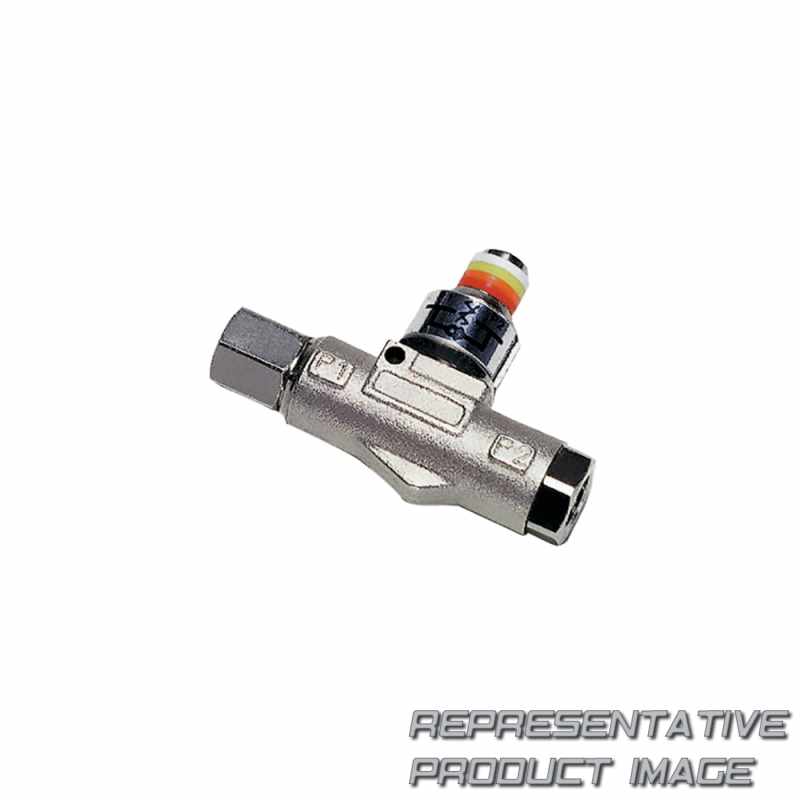

| shape | in-line pressure reducer female | ||
| maximum operating pressure | 8 barg | ||
| maximum operating temperature | 60 °c | ||
| Weight | 0.399 kg | ||
| media | compressed air |
